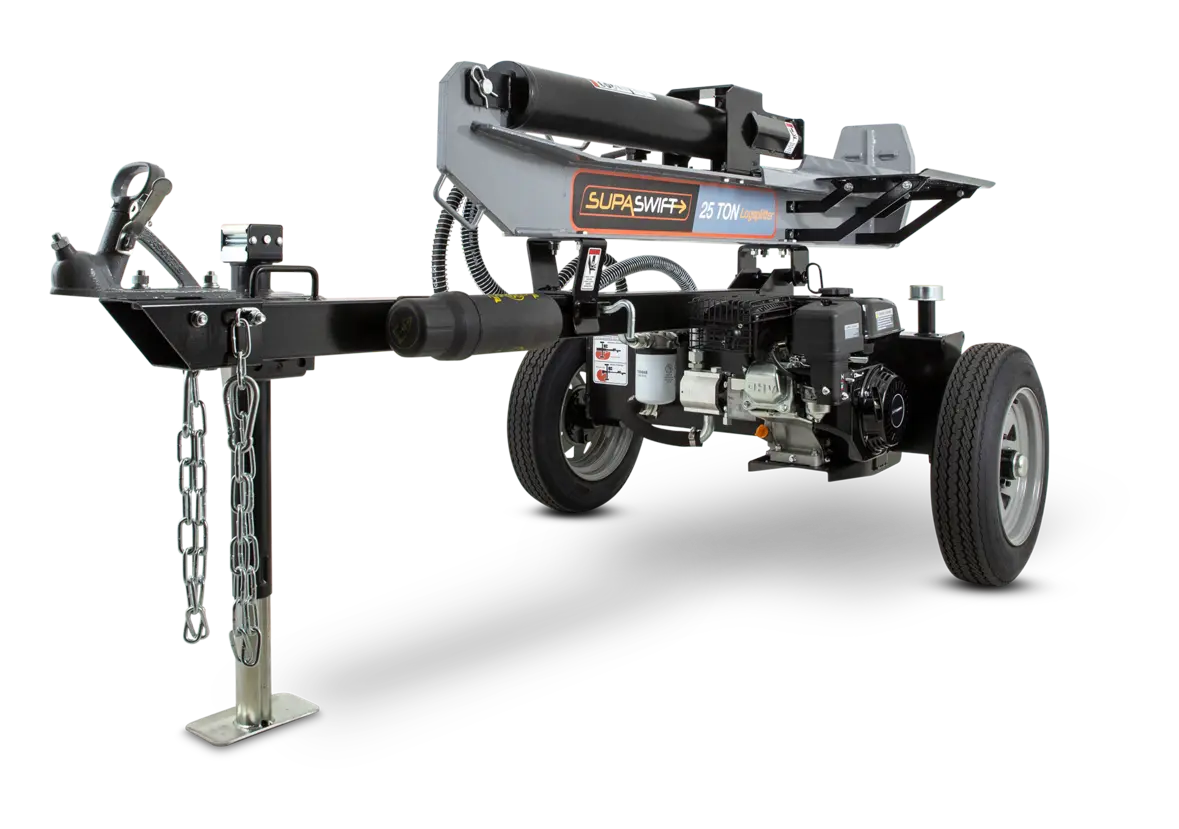

SupaSwift 525ALS 25-Ton Log Splitter

Name: SupaSwift 525ALS 25-Ton Log Splitter
Brand: SupaSwift
SKU: 6104
Availability: InStock

$2,799.00

Category Log Splitters

Request a Quote

Share This Product

Description
Features
Specifications

Description

The SupaSwift 25-Ton log splitter provides quality and power at an affordable price. Fitted with a SupaSwift 6.5 hp (196 cc) engine, a manually activated auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.

Features

Quality Engine – SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine.
Horizontal or vertical operation.
25 Tons of splitting force.
Manually activated auto return valve.
Two stage pump 13 GPM (49.21 litres per minute).
Valve – Ergonomically positioned for operator comfort.
Wedge: 8.5 ” (215.9 mm) High angled heat treated steel.
Wheels / Tyres*: 4.80″ x 12″ D.O.T certified.
Beam: 8.5″ (215.9 mm) Foot plate.

Specifications

Warranty Information
Domestic Warranty: 3 Year Domestic Warranty
Commercial Warranty: 3 Month Commercial Warranty
Hire/Rental Warranty: 3 Month Hire/Rental Warranty
Miscellaneous
Wedge: 8.5″ (215.9 mm) High-angled heat-treated steel
Capacity: 25 Tons of splitting force
Valve: Manually activated auto return valve with adjustable detent
Wheels / Tyres: D.O.T approved 12″ x 4.80″ multi-lug trailer wheel
Engine and Fuel Specs
Engine: SupaSwift 6.5 hp (196 cc) single-cylinder, horizontal shaft OHV engine
Log Splitter Specs
Hydraulic Ram Cylinder (mm): Outside: 114.3 mm x 609.6 mm stroke / Inside: 101.6 mm x 622.3 mm stroke
Hydraulic Tank Capacity (L): 25.5 litres
Maximum Log Length (mm): 25″ / 635 mm
Pump (L): Two-stage pump 13 GPM (49.21 litres per minute)
Tow Hitch (mm): 2″ (50 mm) ball hitch with safety chains – Aust style trailer bail hitch
Operating Position: Horizontal or vertical operation
Cycle Time: 10.9 seconds (down and back)
Beam (mm): 8.5″ Foot plate / 215.9 mm Foot plate
Ram Size: 1.75″ (44.45 mm) Dia
