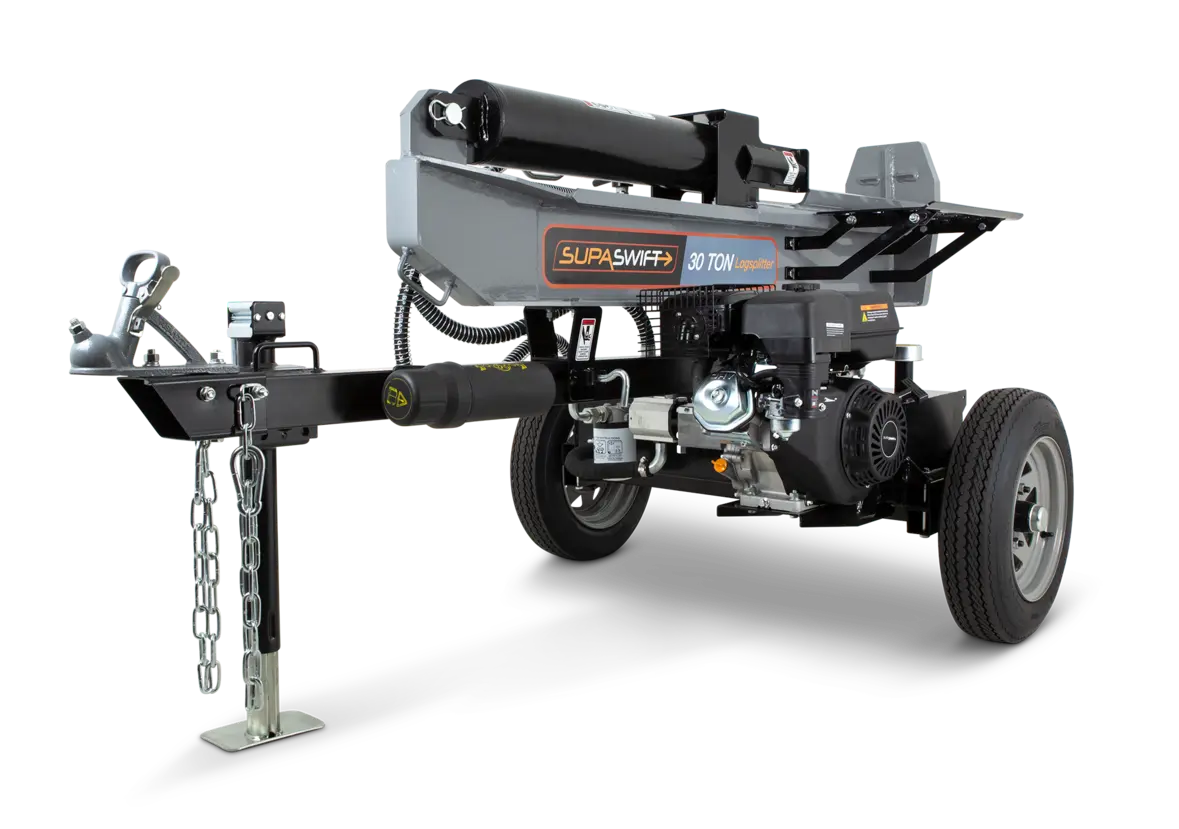

SupaSwift 530ALS 30-Ton Log Splitter

Name: SupaSwift 530ALS 30-Ton Log Splitter
Brand: SupaSwift
SKU: 6105
Availability: InStock

$3,399.00

Category Log Splitters

Request a Quote

Share This Product

Description
Features
Specifications

Description

The SupaSwift 30-Ton log splitter provides quality and power at an affordable price. Fitted with a Loncin G270F (9.5 hp, 270cc) horizontal shaft, single cylinder OHV engine, an auto return valve with an 12.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.

Features

Quality Engine – SupaSwift, 9.5 hp 270cc, horizontal shaft, single cylinder OHV engine.
Horizontal or vertical operation.
30 Tons of splitting force.
Manually activated auto return valve with adjustable detent.
Cycle time, down and back 12.9 seconds.
Two stage pump 15 GPM (56.78 litres per minute).
Valve – Ergonomically positioned for operator comfort.
Wedge: 9″ (228.6 mm) High angled heat treated steel.
Wheels / Tyres*: 4.80″ x 12″ D.O.T certified.
Beam: 9″ (228.6 mm) Foot plate.

Specifications

Warranty Information
Domestic Warranty: 3 Year Domestic Warranty
Commercial Warranty: 3 Month Commercial Warranty
Hire/Rental Warranty: 3 Month Hire/Rental Warranty
Engine & Fuel
Engine: SupaSwift, 9.5 hp 270cc, horizontal shaft, single-cylinder OHV engine
Log Splitter Specifications
Hydraulic Ram Cylinder: Outside – 139.7 mm x 609.6 mm stroke / Inside – 127 mm x 622.3 mm stroke
Hydraulic Tank Capacity: 50 litres (Hydraulic system including hydraulic tank)
Maximum Log Length: 25″ / 635 mm
Two-Stage Pump: 15 GPM (56.78 litres per minute)
Operating Position: Horizontal or vertical operation
Capacity: 30 Tons of splitting force
Cycle Time: 12.9 seconds (down and back)
Design & Ergonomics
Valve: Manually activated auto return valve with adjustable detent
Wedge: 9″ (228.6 mm) High-angled heat-treated steel
Frame & Wheels
Tow Hitch: 2″ (50 mm) ball hitch with safety chains – Aust style trailer bail hitch
Wheels / Tyres: D.O.T approved 12″ x 4.80″ multi-lug trailer wheel
Beam: 9″ Foot plate / 228.6 mm Foot plate
Ram Size: 2″ (50.8 mm) Dia
