G 110

Name: G 110
Brand: Grillo
SKU: 357c93a24370
Availability: InStock

SKU: 357c93a24370 Part No. 8005AP

Categories Grillo Mowers, Lawn Mowers

Request a Quote

Share This Product

Description
Specifications

Description

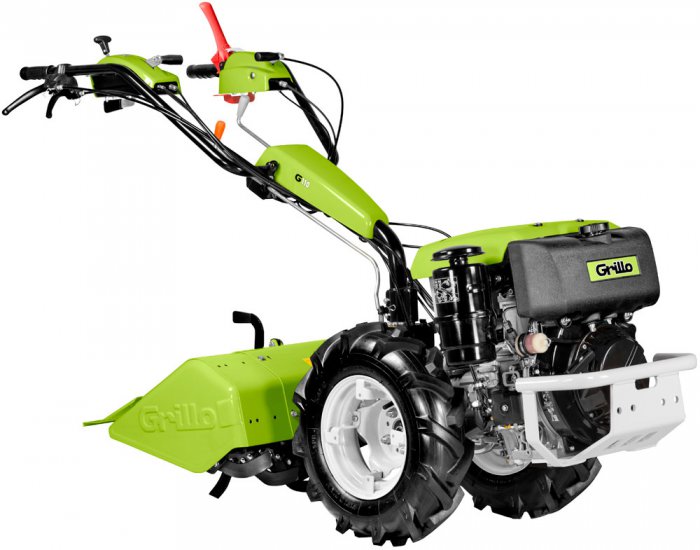

The Grillo G110 is an ideal walking tractor for working in agriculture, horticulture, in vegetable plots and gardening in large areas.

It is a well-balanced machine, fitted with a 6-speed gearbox with 3 forward gears + 3 reverse gears. The differential lock comes as a standard feature.

Despite its devices, such as active clutch and automatic reverse gear decelerator, this walking tractor can be safely handled by the user.

A great deal of front and rear – mounted attachments can be connected to the machine due to the reversing of the handlebar by 180°. Also an optional plough kit including larger diametre wheels, wheel extensions, turn-wrest plough and wheel weights. Attachments can connected through a flanged coupling or a quick coupling without needing tools.

The automatic quick gear-inverter lever reverses the forward movement when the handlebar is 180° turned.

To achieve a greater stability on slopes you can increase the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.

Specifications

Engine Honda GX390 OHV
Start recoil starter
Supply fuel
Displacement 389 cc, 1 Cylinder
Power 11.7 HP (8.7 kW)
Air cooled
Oil bath air filter
Engine Kohler KD15 440
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 6,1 Lt. (GX390) – 5,0 Lt. (KD15 440)
Transmission Gear type in oil bath.
Gearbox With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears.
Reverse gear unit Rapid through lever.
Clutch Conic and active.
Standard rotary tiller Adjustable, with tines x4. Working width: 68 cm.
Hoes system diametre 32 cm
Working width Adjustable 37, 47, 58, 68 cm.
Working depth 16 cm.
Item no. standard rotary tiller 984611
P.T.O. 965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation).
Differential locking With lock device through lever.
Available tyres 4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40×10 cm, Turf wheels 20×10.00-8 (item 937112 needed)
Speed With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h.
Service brake Drum brake, as a standard feature.
Handlebar With height and side adjustment and reversible.
Safety devices Active clutch, reverse speed – PTO cut out, automatic decelerator in reverse speed.
Weight 142 kg (GX390) with cm 68 rotary tiller and 5.00-10 wheels- 168 kg (KD15 440) with cm 68 rotary tiller and 5.00-10 wheels
