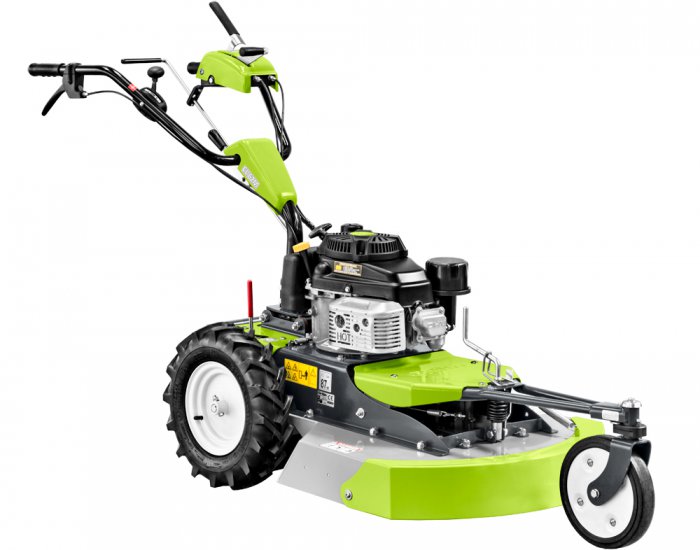

CL 62M

Features

The deck of the CL 62M is mounted at the front therefore allowing the operator to cut under low positioned branches or bushes. High grass, coppices and bushes are guided into the cutter deck and cut by the blade with (shock-resistant) swinging tips which are made from special steel, the cut material is then discharged out of the rear. If necessary the cutter deck’s front aperture will lift up automatically when entering high vegetation without crushing in down, which considerably increases the efficiency of the machine.

The deck of the CL62M is made entirely of steel, the cutting height can be adjusted from a minimum of 50 up to 110 mm. Adjustment is progressive by hand crank, which is very easy to use. The cutting blade is equipped with shock-proof floating ends made of special molded steel with a special anti-noise shape with mulching effect. The maximum cutting height of 110 mm is ideal when the ground is uneven so as not to accidentally hit the ground.

The front wheel of the cutting deck is full, impossible to drill! When cutting along the coast, its rotation can be locked to facilitate straight feeding. Locking/unlocking is done quickly, without the use of any tools.

The CL62M has a calibrated weight distribution with a very low center of gravity. The result is perfect balance!

During work, you can operate the handlebar with one hand, which allows you to adjust the forward and reverse gears via the control on the handlebar. When mowing along slopes, near trees and other obstacles, or if you are mulching brushwood and shrubs under low branches, this feed adjustment system comes in very handy!

The handlebar of the CL62M has double adjustment: height wise to meet the needs of all users, and laterally to facilitate cutting in difficult areas such as under low branches or obstacles.

The transmission of the CL62M is hydro-static, the speed ranges from 0 to 4.7 km/h in continuously variable forward, and up to 3 km/h in reverse.

The CL62M has a disc parking brake that keeps the machine stationary even on slopes. All controls are in a comfortable position, including the handlebar adjustment levers.

The Grillo CL62M is powered by a Kawasaki FJ180V OHV petrol engine with a 1.6 litre fuel tank. The single-cylinder engine has a displacement of 179 cc and adopts modern solutions that guarantee reliability such as overhead valves, low emissions, low fuel consumption, high performance and minimal vibrations.

The CL62M can easily be placed in an upright position by simply resting the handlebar on the ground. Maintenance and cleaning of the plate is therefore easy. The CL 62M can be fitted with non-slip iron toothed discs as accessories for extra grip on slippery and steeply sloping terrain.

All components, from the simplest to the most complex, are of high quality. Frame, handlebars, plate, everything is built by Grillo in Italy, using the best materials and the latest technology to achieve high, consistent and 100% controlled quality.

The painting of Grillo machines is double-layer electrostatic powder. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second coat of paint and a further baking in the oven at 190°c give the characteristic hardness and gloss.

All CL62M are meticulously assembled and thoroughly tested by specialized personnel. The final inspection of the CL62 includes a test with the engine running to check every function. A further and final guarantee for a high quality product.

Specifications

• Engine Kawasaki FJ180V
• Start recoil starter
• Supply fuel
• Displacement 179 cc, 1 Cylinder
• Power 4.5 HP (3.4 kW)
• Air cooled
• Dry air filter with interchangeable filter cartridges
• Fuel tank capacity 1,6 L.
• Transmission hydrostatic
• Traction 2WD
• Cutter deck Rear discharge with front tipping opening
• Cutting configuration with one “Mulching type” rotating blade.
• Cutting width 62 cm
• Cutting height From 5 to 11 cm continuously and rapidly adjustable by means of a crank lever
• Peripheral blade speed 74 m/s
• Drive wheels 4.00-8 tractor wheels
• Front wheel Puncture-proof
• Speed Continuously variable from 0 to 4,7 km/h, reverse gear from 0 to 3 km/h
• Parking brake By lever
• Handlebar By means of a rapid height and lateral adjustment of the handlebar
• Mowing capacity per hour (indicative) 2000 m^2/h
• Length 190 cm
• Width 70,7 cm
• Height 100 cm
• Weight 98 kg
