G 131 – G 131BC
SKU: 20bac91d03cf
Part No. 85REQ
in stock
Grillo

G 131 – G 131BC

SKU: 20bac91d03cf Part No. 85REQ
  • Description
  • Specifications

Description

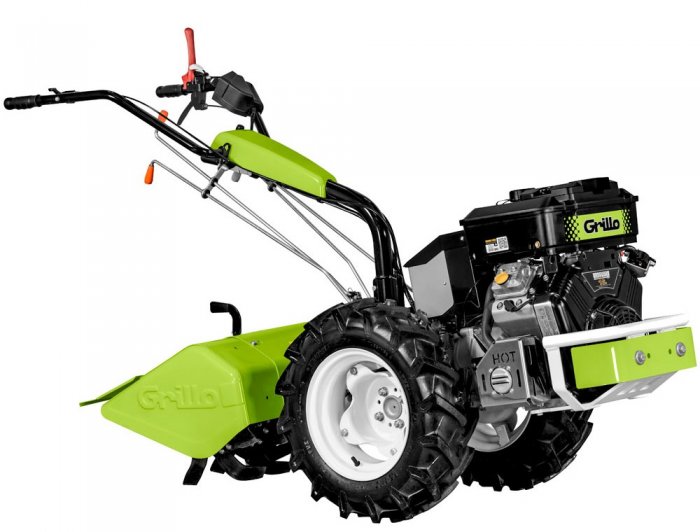

The G 131 is an ideal walking tractor for working in large areas in agriculture, horticulture, and in vegetable gardens.

It is a well-balanced machine, fitted with a 6-speed gearbox in oil-bath with 4 forward gears + 2 reverse gears.

Due to the possibility to reverse the handlebar, several front and rear implements can be mounted to this machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower, power harrow etc.

They can be connected via a flanged coupling. An optional plough kit containing large wheels, wheel extensions, turn-wrest plough and wheel weights.

To make transport easier when the engine is turned off, you can disengage the wheel axle.

A greater stability can be achieved by widening the wheel track from 12 to 24 cm using the appropriate Grillo wheel extensions.

Specifications

  • Engine Briggs & Stratton 16 Vanguard V-Twin OHV
  • Start electric, with 12 V battery
  • Supply fuel
  • Displacement 479 cc, 2 Cylinders
  • Power 14 HP (10.3 kW) – Gross power 16 HP
  • Air cooled
  • Dry air filter with interchangeable filter cartridges
  • Engine Kohler KD15 440
  • Start recoil starter and electric with 12V battery
  • Supply diesel
  • Displacement 441 cc, 1 Cylinder
  • Power 11 HP (8.1 kW)
  • Air cooled
  • Oil bath air filter
  • Fuel tank capacity 8.5 L (Vanguard 16) – 5 L. (KD15 440)
  • Transmission with oil bath gears
  • Gearbox With clutch engagement. The walking tractor version has 4 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
  • Clutch single dry disc with manual control
  • Standard rotary tiller Adjustable rotary tiller with x 4 tines Working width 700 mm
  • Hoes system diametre 32 cm (tiller x 4) – 36 cm (tiller x 6)
  • Working width Adjustable at 550 and 700 mm (850 mm with extension kit cod. 930312)
  • Working depth 18 cm
  • Item no. standard rotary tiller 989011
  • P.T.O. a higher one (upon request) synchronised with the gearbox; one lower at 1028 rpm in clockwise rotation with engine at 3000 rpm
  • Differential locking Differential with locking device by lever on the handlebar
  • Available tyres Tractor 5.00-12 wheels (adjustable disks) and 6.5/80-12 wheels (adjustable disks). Wide steel wheels having diametre 46 x 12 cm
  • Speed In the walking tractor version with 5.00-12 wheels 1st gear 1,2 km/h, 2nd gear 2,4 km/h, 3rd gear 3,4 km/h, 4th gear 7,1 km/h, 1st reverse gear 1,7 km/h, 2nd reverse gear 3,5
  • km/h. In the sickle bar version with 5.00-12 wheels 1st gear 1,7 km/h, 2nd gear 3,5 km/h , 1st reverse gear 1,2 km/h, 2nd reverse gear 2,4 km/h
  • Service brake Brake drum (kit upon request cod. 978611)
  • Handlebar height and side adjustment, reversible
  • External sizes of the wheels 55, 60, 70 or 75 cm with 5.00-12 wheels
  • Weight 195 kg (with Vanguard 16) – 192 kg (with KD15 440)
