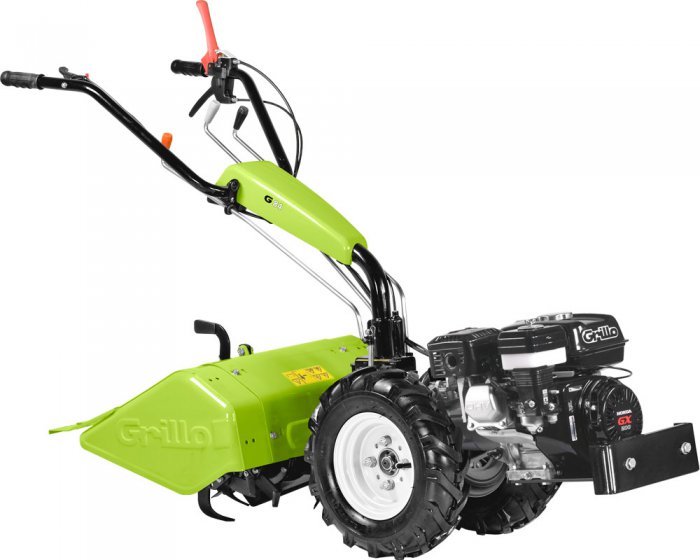

G 84

Specifications

• Engine Honda GX200 OHV
• Start recoil starter
• Supply fuel
• Displacement 196 cc, 1 Cylinder
• Power 5.5 HP (4.1 kW)
• Air cooled
• Oil bath air filter
• Fuel tank capacity 3,1 L
• Transmission With oil bath gears
• Gearbox With clutch engagement.
• The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
• Reverse gear unit By lever
• Clutch Conic active
• Standard rotary tiller Adjustable rotary tiller with x 4 tines. Working width 580 mm
• Hoes system diametre 32 cm
• Working width Adjustable at 370 and 470 mm (680 mm with extensions)
• Working depth 16 cm
• P.T.O. 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
• Available tyres Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm.
• Pneumatic Turf wheels 20×10.00-8 (extensions cod. 937112 needed)
• Service brake Brake drum (kit upon request cod. 978111)
• Handlebar Height and side adjustment. Fitted on anti-vibration blocks
• Safety devices Active clutch, reverse speed – PTO cut-out
• External sizes of the wheels 42 or 37 cm with 4.00-8 wheels
• Weight with tiller, 111 kg
