G 85d

Name: G 85d
Brand: Grillo
SKU: b57c62fa2a65
Availability: InStock

SKU: b57c62fa2a65 Part No. 8ERCN

Categories Grillo Mowers, Lawn Mowers

Request a Quote

Share This Product

Description
Specifications

Description

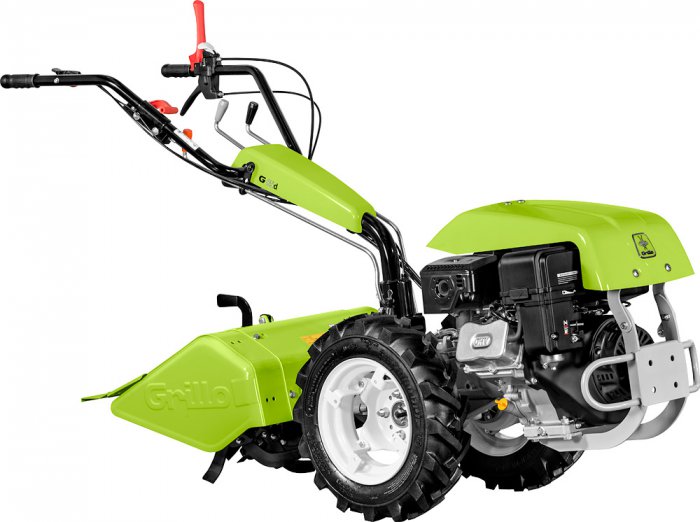

The Grillo G85d is an appropriate walking tractor for working in horticulture, orchards, vegetable plots and for gardening in medium-sized and large areas.

It is fitted with a 4 speed- gearbox with gears in oil-bath, with 2 forward and 2 reverse gears. The differential lock comes as a standard feature. Due to the several safety devices it is fitted with, this walking tractor can be safely used. Thanks to the possibility to reverse the handlebar through 180°, a lot of front and rear-mounted attachments can be connected to the machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower etc. via either a flanged coupling or through a quick coupling for which no tools are needed.

A plough kit is available too and includes larger wheels, adjustable extensions, a 180° turn-wrest plough and wheel weights.

To achieve a greater stability on slopes, it is possible to widen the wheel track up to maximum 25 cm by using fixed or adjustable wheel extensions.

Specifications

Engine Kohler KD15 350
Start recoil starter
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Engine Kohler KD15 350 AE
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Engine Loncin G300FA
Start recoil starter
Supply fuel
Displacement 302 cc, 1 Cylinder
Power 9.3 HP (6.8 kW)
Air cooled
Dry air filter
Engine Rato R300D
Start recoil starter and electric with 12V battery
Supply fuel
Displacement 301 cc, 1 Cylinder
Power 8.2 HP (6 kW)
Air cooled
Dry air filter
Engine Honda GX270 OHV
Start recoil starter
Supply fuel
Displacement 270 cc, 1 Cylinder
Power 8.4 HP (6.3 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 5.4 L eng. R300D – 6.1 L eng. G300FA – 4.3 L eng. KD15 350 – 5.3 L. eng. GX270
Transmission with oil bath gears
Gearbox With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
Reverse gear unit by lever
Clutch conic active
Standard rotary tiller Adjustable rotary tiller with x 4 tines. Working width 58 cm
Hoes system diametre 32 cm
Working width Adjustable at 370 and 470 mm (680 mm with extension kit cod. 929112)
Working depth 16 cm
Item no. standard rotary tiller 984511
P.T.O. 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Differential locking Differential with locking device by lever on the handlebar
Available tyres Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wide steel wheels having diameter 40 x 10 cm. Pneumatic wheels garden 20×10.00-8 (extensions cod. 937112 needed)
Speed With 4.00-10 wheels 1st gear 1,2 km/h, 2nd gear 3,0 km/h
Service brake Brake drum (kit upon request cod. 978111)
Handlebar Height and side adjustment. Fitted on anti-vibration blocks
Safety devices Active clutch, reverse speed – PTO cut-out
Weight 127 kg (standard version)
