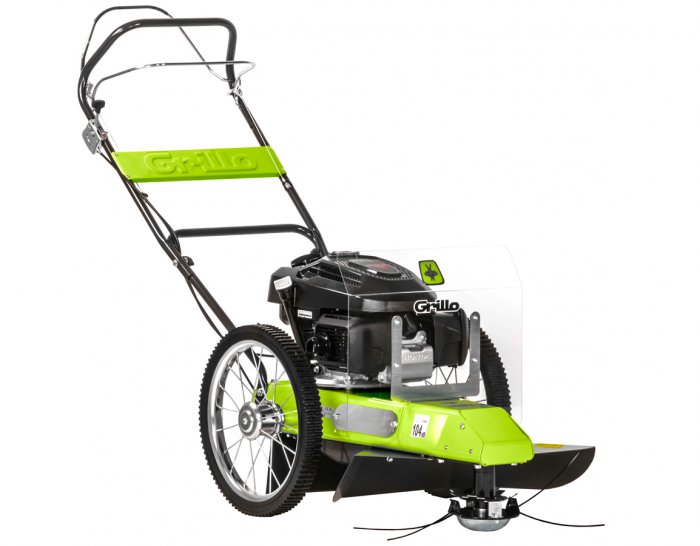

HWT 600 WD

Features

The HWT 600 WD is fitted with a Honda GCV 170, 4-stroke petrol engine with oil bath gear transmission and high strength drive belt.

The brush-cutter is equipped with traction and allows convenient operation in all working conditions.

The forward speed is 2.5 km/h.

It’s equipped with a comfortable handlebar and front mounted lever to engage the cutter head and a rear lever to engage the drive system.

The machine comes standard with a steel grass guard to prevent grass clippings from being thrown onto the road or driveways; a clear plastic front screen protects the engine without taking away visibility, while a rubber lower bulkhead, positioned between the wheels, prevents the operator from being run over by the grass clippings.

A stainless-steel anti-winding disc on the wire stop plate prevents grass from twisting on the cutting rotor.

The large driving wheels allow you to operate the machine with less fatigue and can also be used on slopes (max 25°). By reversing the cord attachment plate you can obtain lower cutting heights.

Painting of all Grillo machines incorporates a double electrostatic powder coating process. At the first stage are the washing baths and preparation, then a first protective coat is applied which is then baked in a special oven, this has proven to be the best base for the application of the finish. The second coat consists of powder coating and still further baking in an oven at 190°C, this then produces the characteristic hardness and shine. All machines are assembled with care in every detail and tested scrupulously by trained personnel. Final inspection will include running the engine in order to check all its functions and ensure the further and final guarantee of a first class product.

Specifications

• Engine Honda GCV170 OHC
• Start recoil starter
• Supply fuel
• Displacement 166 cc, 1 Cylinder
• Power 4.8 HP (3.6 kW)
• Air cooled
• Dry air filter with interchangeable filter cartridges
• Fuel tank capacity 0,9 L
• Transmission mechanical with single-speed
• Cutting configuration 2 double cablepairs
• Cutting width 60 cm
• Cutting height Adjustable at 1.5 – 3 – 5 – 6 cm
• Wheels 16″ (Ø 41 cm) driven
• Speed 2.5 km/h
• Standard features transparent engine protection, flexible rubber band between the wheels, side plastic protection, anti-wrapping disc.
• External sizes of the wheels 55 cm
• Weight 47 kg
