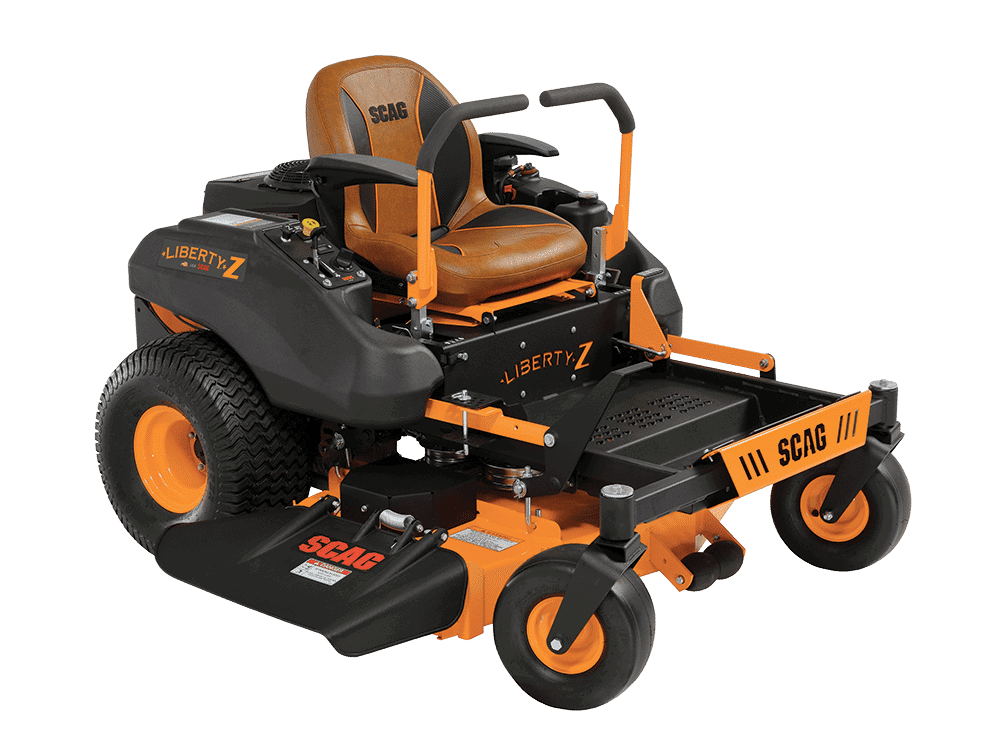

Liberty Z 48″
SKU: Liberty Z 48"
in stock
scag

Liberty Z 48″

SKU: Liberty Z 48"
  • Description
  • Features
  • Specifications

Description

The star of the show on this Liberty Z 48 inch unit has to be the heavy duty hydraulic system (a dual hydro gear set up that allows for full zero turn maneuverability) that has been made into the Kohler 7000 PRO Series motors to offer plenty of power without sacrificing fuel efficiency.

A 4 foot mowing deck helps you to move through your lawn much faster than you would have been able to before, as well as the ability to cruise at upwards of 11 km/h when you’re atop this lawnmower. The control scheme is easy to manipulate, allowing you to mow in straight lines as well as to turn on a dime without any hesitation and without any inefficiency along the way.

Easy to work on (even without a lot of mechanical inclination), you’ll be pleased to know that you won’t have to do a lot of repair or upkeep to keep this SCAG mower up and running. It has all the legendary durability you’ve come to expect from this top-tier brand and a warranty (five years or 750 hours) you can count on.

Ideally suited for those with larger lawns that don’t want to sacrifice maneuverability, there’s a lot to fall in love with when it comes to the Liberty Z 48 inch model.

Features

  • Deep, Fabricated, and Welded Cutter Decks: Heavy-duty Hero Cutter Deck design yields excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty aluminum sealed ball bearing blade-drive spindles ensure reliable performance season after season.
  • Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
  • Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
  • Speeds Up to 7 MPH: The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels.
  • More Uptime: Fewer grease points increase operator convenience and ease of ownership.
  • Ride in Comfort: Ultra-comfortable and adjustable (with tools) seat, contoured for improved comfort, and features armrests.
  • Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted, making raising the cutter deck smooth and easy.
  • Reliable Power, Up to 22 HP: Power your Freedom with commercial-grade, full pressure lubrication engines. 22 HP Kohler 7000 PRO Series V-Twin engine options.

Specifications

  • Length: 67.5″
  • Width (chute down): 60.5″
  • Width (chute in transport position): 49″
  • Height: 41″
  • Weight: 612 lb

Specifications – Scag Liberty Z 48

General

  • Total Fuel Capacity: 5.5 gallons
  • Drive Tires: 20″ x 10″-8″
  • Caster Tires: 11″ x 6″-5″
  • Seat: Padded with arm rests, adjustment forward and back (tools required)

Drive System

  • Drive System Type: Tuff Torq TZ450 Transaxle (48″)
  • Pumps: Internal Pump: 10 cc
  • Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
  • Forward Ground Speed: 7 mph
  • Reverse Ground Speed: 5 mph
  • Parking Brake: Hand lever

Deck

  • Cutting Width: 48″
  • Type: Heavy-Duty Hero Cutter Deck
  • Cutting Height: 1.5″ to 4.5″ in .25″ increments
  • Deck Lift: Foot-operated pedal
  • Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
  • Spindles: Aluminum housing with sealed ball bearings.
  • Blade Engagement: Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.
