Grillo
G 107d
SKU: 4d7048b3a3cd
Part No. 83RAM
in stock
Grillo

G 107d

SKU: 4d7048b3a3cd Part No. 83RAM
  • Description
  • Specifications

Description

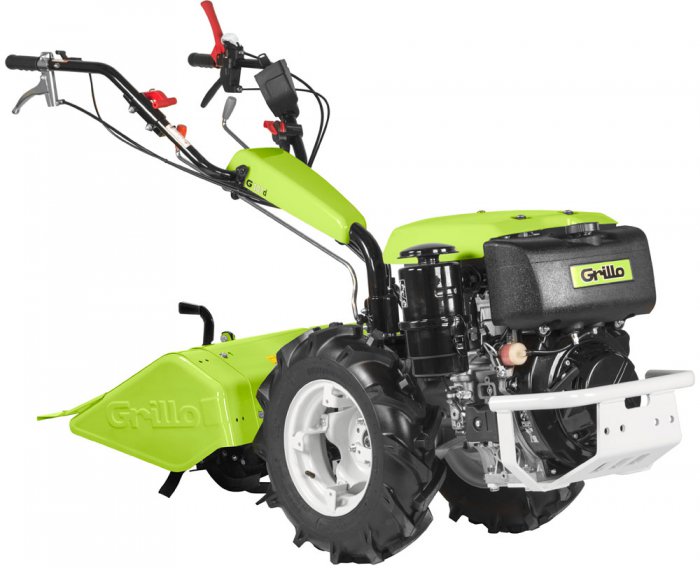

The Grillo G 107 d is a walking tractor equipped with a reversible handlebar and ideal for working on medium-sized areas. The six-speed gearbox with gears in oil-bath 3 forward gears and 3 reverse gears. The differential lock comes as a standard feature on this machine.

The G 107 d is also fitted with an automatic quick gear-inverter, a device that manages the drive when turning the handlebar of 180°.

The reverse gear handlebar is placed on the handlebar, and is easily achievable.

Together with its broad offer implements and its reversible handlebar, G 107 d turns out to be an extremely versatile walking tractor.

The implements can be attached via a flanged coupling or a quick coupling, available as an extra, without the need of tools.

A plough kit containing larger wheels, adjustable extensions, 180° turn-wrest plough and wheel weights is available as an optional attachment.

To achieve a greater stability on slopes you can widen the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.

Specifications

  • Engine Kohler KD15 440
  • Start recoil starter
  • Supply diesel
  • Displacement 441 cc, 1 Cylinder
  • Power 11 HP (8.1 kW)
  • Air cooled
  • Oil bath air filter
  • Engine Kohler KD15 440
  • Start recoil starter and electric with 12V battery
  • Supply diesel
  • Displacement 441 cc, 1 Cylinder
  • Power 11 HP (8.1 kW)
  • Air cooled
  • Oil bath air filter
  • Engine Honda GX270 OHV
  • Start recoil starter
  • Supply fuel
  • Displacement 270 cc, 1 Cylinder
  • Power 8.4 HP (6.3 kW)
  • Air cooled
  • Oil bath air filter
  • Engine Loncin G300FA
  • Start recoil starter
  • Supply fuel
  • Displacement 302 cc, 1 Cylinder
  • Power 9.3 HP (6.8 kW)
  • Air cooled
  • Dry air filter
  • Engine Rato R300D
  • Start recoil starter and electric with 12V battery
  • Supply fuel
  • Displacement 301 cc, 1 Cylinder
  • Power 8.2 HP (6 kW)
  • Air cooled
  • Dry air filter
  • Fuel tank capacity 5.3 L eng. GX270 – 5.4 L eng. R300D – 6.1 L eng. G300FA – 5.0 L eng. KD15 440
  • Transmission with oil bath gears
  • Gearbox With clutch engagement. The walking tractor version has 3 forward gears + 3 reverse gears. The sickle bar version has 3 forward gears + 3 reverse gears
  • Reverse gear unit Inverter: rapid type with lever
  • Clutch conic active
  • Standard rotary tiller Adjustable rotary tiller with x 4 tines, includes extension kits. Working width 680 mm
  • Hoes system diametre 32 cm
  • Working width Adjustable at 680, 470 at 370 mm
  • Working depth 16 cm
  • Item no. standard rotary tiller 984611
  • P.T.O. 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
  • Differential locking Differential with locking device by lever on the handlebar
  • Available tyres Pneumatic wheels Tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels Tractor 5.00-12 (adjustable disks) for
  • plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20×10.00-8 (extensions cod. 937112 needed)
  • Speed With 5.00-10 wheels 1st gear 1,3 km/h, 2nd gear 3,1 km/h, 3rd gear 3,6 km/h
  • Service brake Brake drum (kit upon request cod. 978111)
  • Handlebar height and side adjustment, reversible
  • Safety devices Active clutch, reverse speed – PTO cut-out
  • Weight Weight: standard version 136 kg
