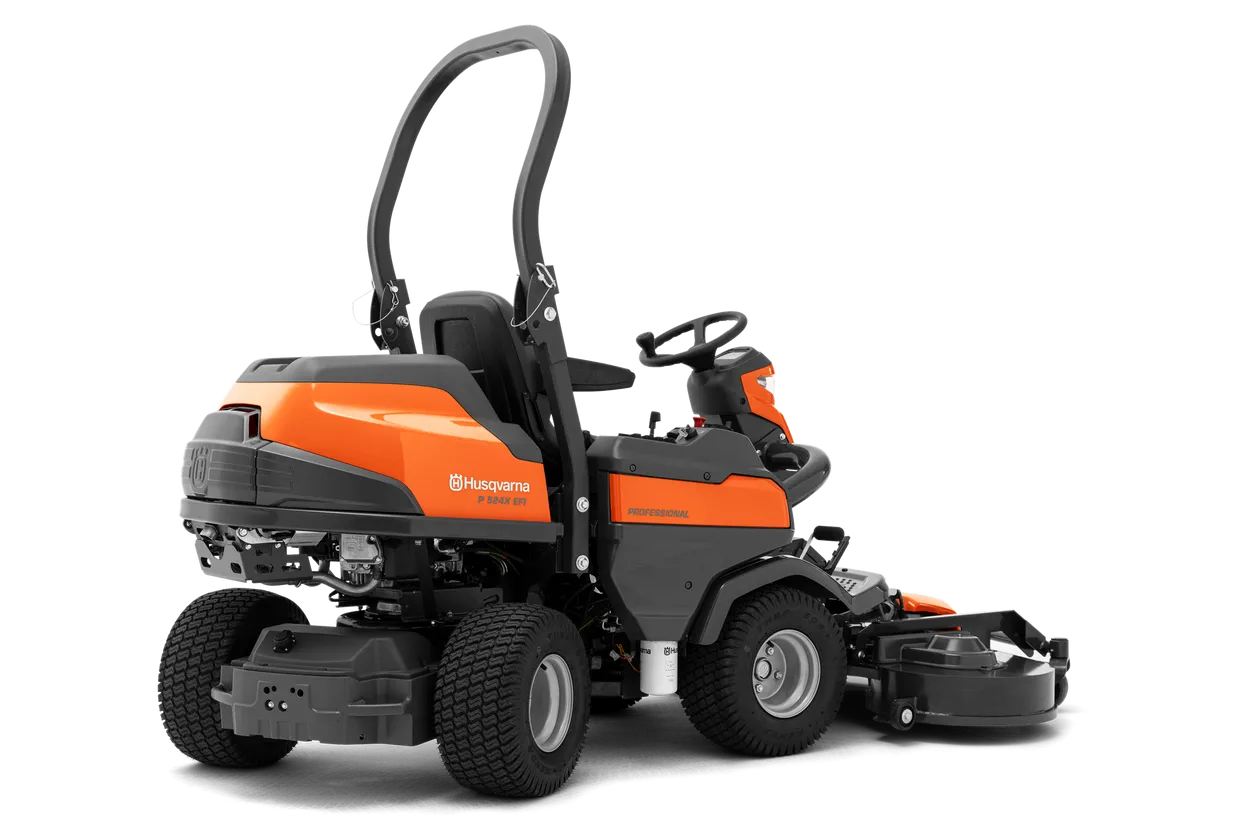

HUSQVARNA P 524
SKU: 967 84 79‑01 $21,599.00
Quantity
Remove
plus

local-community-engagementServicing Toowoomba & The Darling Downs

RepairsEquipment servicing and Repairs

ovre-30-years-experienceOver 30 Years of Experience

Authorised-husqvarna-dealerAuthorised Husqvarna Dealer

safety-appearel-offeringSafety Apparel

competitive-pricingCompetitive Pricing

in stock
husqvarna
HUSQVARNA P 524
SKU: 967 84 79‑01
Part No. 967 84 79‑01 $21,599.00
Category
in stock
husqvarna

HUSQVARNA P 524

SKU: 967 84 79‑01 Part No. 967 84 79‑01 $21,599.00
Category
Quantity
Remove
plus
  • Description
  • Features
  • Specifications

Description

Compact and efficient All-Wheel-Drive front mower for year-round maintenance in complex and narrow areas. Suitable for sport clubs and hotels as well as housing agencies and contractors who want a versatile, compact front mower that is highly manoeuvrable. Thanks to the front-mounted cutting deck the operator has a perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Increased durability through long-life components. Attachments such as flail mower and broom give increased productivity all-year round.

The P 524 can be fitted with either a 112 or 122 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Price excludes deck. Decks supplied at additional cost.

Features

  • Patented articulated steering
  • Trimming ability
  • Mowing accessibility
  • Combi deck
  • Commercial grade transmission
  • All-Wheel Drive (AWD)
  • Versatile usage
  • All-Wheel-Drive (AWD)
  • Quick coupling
  • Ergonomic operation
  • Hydraulic power steering
  • Easy-access controls
  • Tilting hood
  • Greasable mandrels
  • Cargo holder
  • Service position
  • Durable ladder frame
  • Cast iron rear wagon
  • 16 inch wheels

Specifications

  • Engine
    • Art no: 967 84 79‑01
    • Power/fuel type: Petrol
    • Net power at preset rpm: 13.9 kW
    • Net power at preset rpm: 3,000 rpm
    • Motor/engine manufacturer: Kawasaki
    • Engine name: FX Series V-Twin
    • Cylinder displacement: 726 cm³
    • Cylinders: 2
    • Engine cooling: Air
    • Engine lubrication type: Full pressure
    • Oil filter: Yes
  • Emission
    • Exhaust emissions (CO₂ EU V): 792 g/kWh
  • Battery
    • Battery capacity: 24 Ah
    • Battery type: Lead-Acid
    • Battery pack weight: 5.4 kg
    • Battery manufacturer: Global
  • Cutting deck
    • Uncut circle: 50 cm
    • Cutting width, min: 112 cm
    • Cutting width, max: 122 cm
    • Cutting height min: 25 mm
    • Cutting height max: 80 mm
    • Blade engagement: Electric clutch
  • Dimensions
    • Tyre dimensions, front: 18×8.5-8
    • Tyre dimensions, rear: 18×8.5-8
    • Wheelbase: 100 cm
    • Ground clearance: 105 mm
    • Base machine, length: 205 cm
    • Base machine, width: 98 cm
    • Base machine, height: 117.4 cm
    • Gross weight towed: 200 kg
    • Weight (excl. cutting equipment): 427 kg
  • Drive system
    • PTO (Power Take Off): Belt-driven
    • Transmission type: Hydrostatic
    • Transmission manufacturer, rear: Kanzaki
    • Drive method: Dual pedal-operation
    • Speed forward max: 13 km/h
    • Speed reverse max: 5.6 mph
    • Speed reverse max: 9 km/h
    • Transmission manufacturer, front: Kanzaki
    • Transmission model, front: KTM 23LB
    • Transmission model, rear: KTM 23SB
  • Equipment
    • Seat suspension: Yes
    • Seat type: Premium
    • Hour meter type: Digital
    • Seat material: Vinyl
    • Seat back height: High
    • Foldable seat: Yes
    • Steering wheel type: Professional
    • Parking brake, type: Disc
  • Vibration
    • Vibration level steering wheel: 3 m/s²
    • Vibration level seat: 0.7 m/s²
  • Sound and Noise
    • Sound pressure level at operators ear: 88 dB(A)
    • Sound power level, guaranteed (LWA): 104 dB(A)
    • Sound power level, measured: 102 dB(A)
