HUSQVARNA R 316TsX AWD

Name: HUSQVARNA R 316TsX AWD
Brand: Husqvarna
SKU: 970 54 29‑10
Availability: InStock

SKU: 970 54 29‑10 Part No. 970 54 29‑10 $15,499.00

Category Riders

Share This Product

Description
Features
Specifications

Description

A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna Rider R 316TsX AWD is designed for all-year use, with a great variety of accessories and combi cutting decks available. Power-assisted articulated steering and all-wheel drive provide great control and traction in challenging terrain. The engine hood covering the powerful V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back for better visibility in dark conditions. Ready for Husqvarna Connect with Bluetooth®

Features

Adjustable steering wheel
HMI Display
Attachment frame
Combi cutting deck
Power steering
Comfortable driver’s position

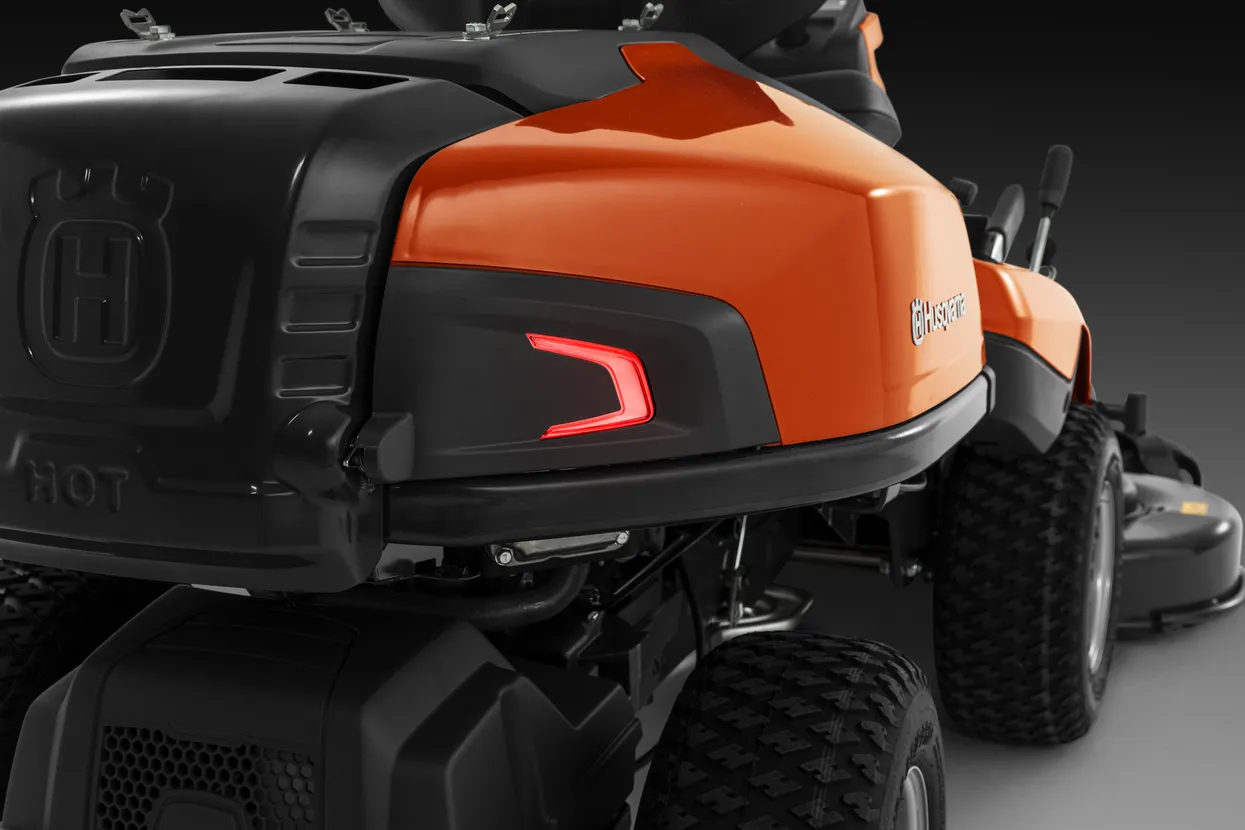

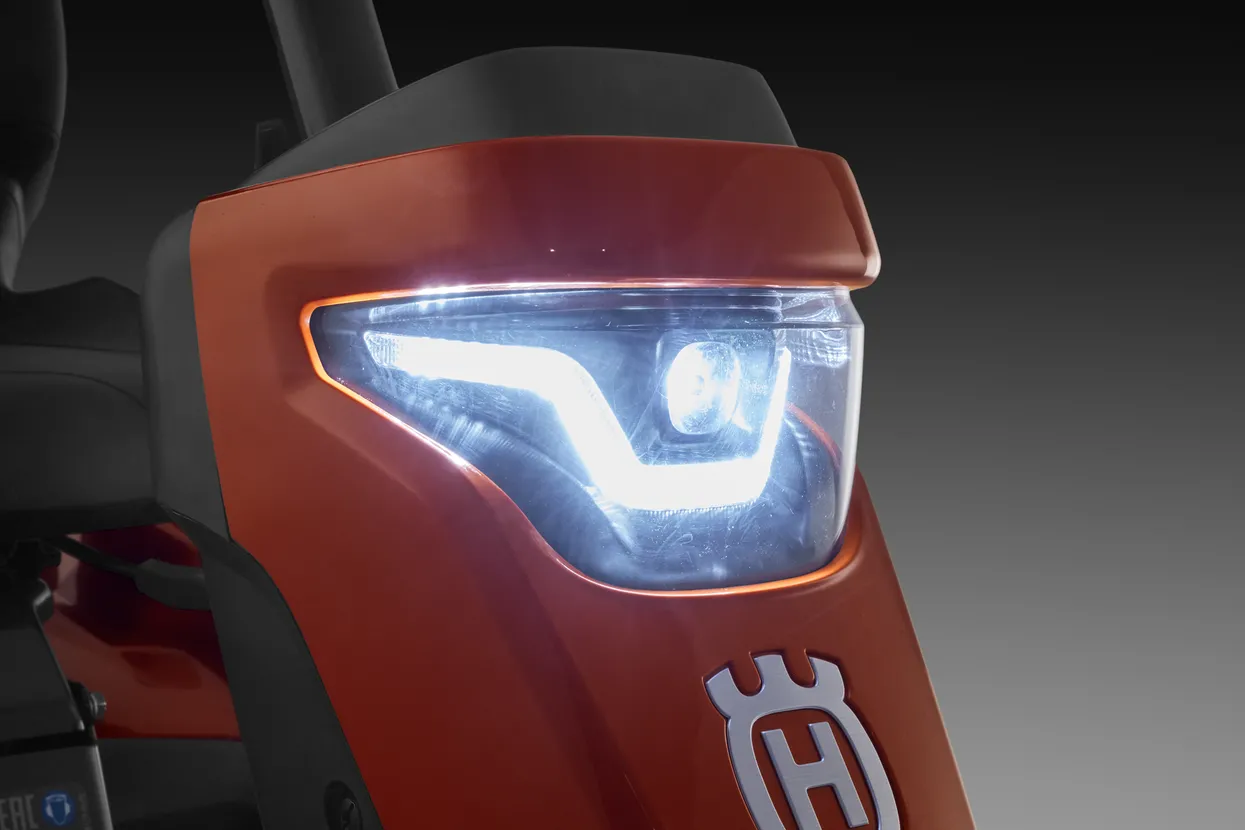

Dual LED lights for improved visibility.
Front-mounted cutting deck
Patented articulated steering
All-Wheel-Drive (AWD)
Service position
Husqvarna Connect

Specifications

Engine
- TEMP BUNDLE EXCEPTION AU/NZ ONLY – Bundle contains: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK
- Art no: 970 54 29‑10
- Power/fuel type: Petrol
- Net power at preset rpm: 9.7 kW
- Net power at preset rpm: 3,100 rpm
- Motor/engine manufacturer: Kawasaki
- Engine name: FS481V
- Cylinder displacement: 603 cm³
- Cylinders: 2
- Engine cooling: Air
- Engine lubrication type: Full pressure
- Oil filter: Yes
Emission
- Exhaust emissions (CO₂ EU V): 851 g/kWh
Battery
- Battery capacity: 24 Ah
- Battery type: Lead-Acid
- Battery pack weight: 7.2 kg
- Battery manufacturer: Global
Cutting deck
- Uncut circle: 30 cm
- Cutting width, min: 94 cm
- Cutting width, max: 112 cm
- Cutting height min: 25 mm
- Cutting height max: 75 mm
- Blade engagement: Automatic
Dimensions
- Tyre dimensions, front: 170/60-8
- Tyre dimensions, rear: 170/60-8
- Wheelbase: 88.7 cm
- Ground clearance: 90 mm
- Base machine, length: 200.8 cm
- Base machine, width: 88.3 cm
- Base machine, height: 118.1 cm
- Gross weight towed: 125 kg
- Weight (excl. cutting equipment): 251 kg
Drive system
- PTO (Power Take Off): Belt Drive
- Transmission type: Hydrostatic
- Drive method: Dual pedal-operation
- Speed forward max: 9 km/h
- Speed reverse max: 3.7 mph
- Speed reverse max: 6 km/h
Equipment
- Seat suspension: Yes
- Seat type: Premium
- Hour meter type: Digital
- Seat material: Vinyl
- Seat back height: High
- Foldable seat: Yes
- Steering wheel type: Ergonomic – soft grip
- Parking brake, type: Disc
Vibration
- Vibration level steering wheel: 2.5 m/s²
- Vibration level seat: 0.7 m/s²
Sound and Noise
- Sound pressure level at operators ear: 87 dB(A)
- Sound power level, guaranteed (LWA): 99 dB(A)
- Sound power level, measured: 98 dB(A)
