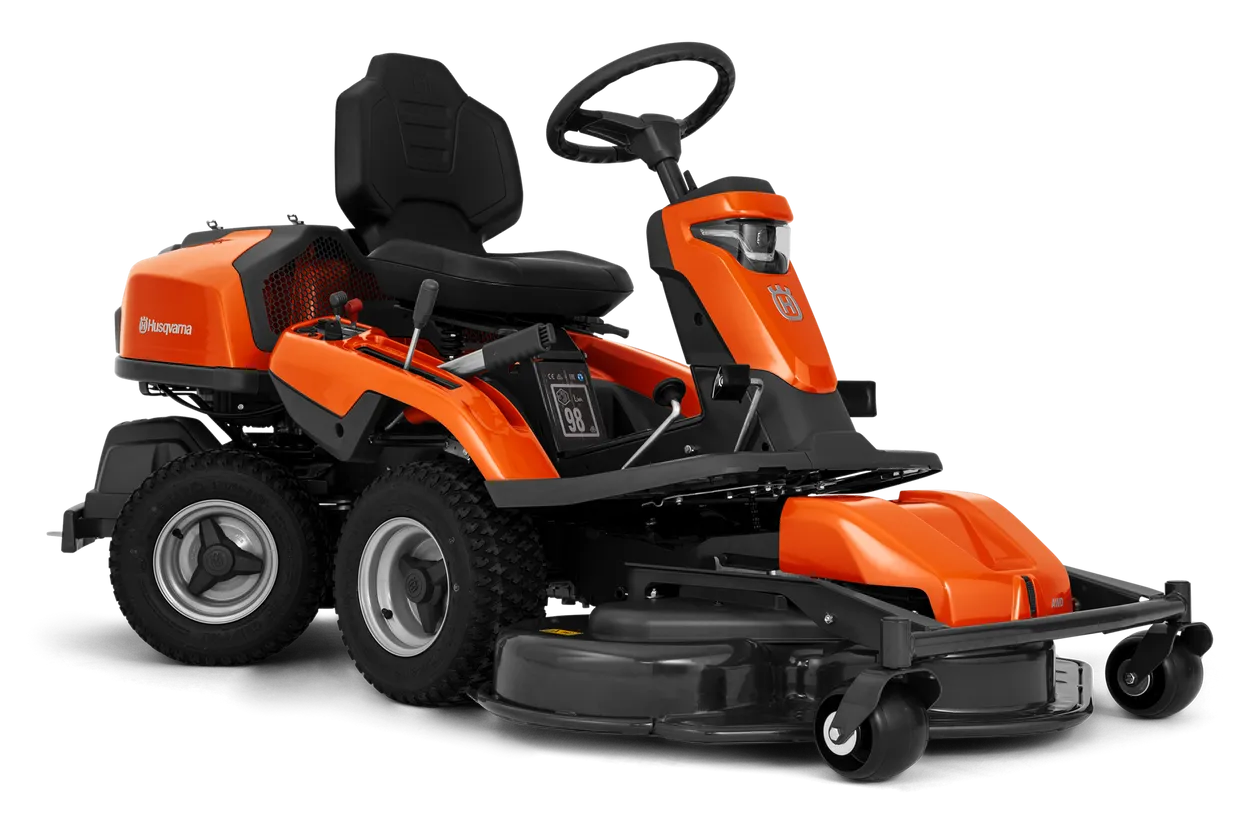

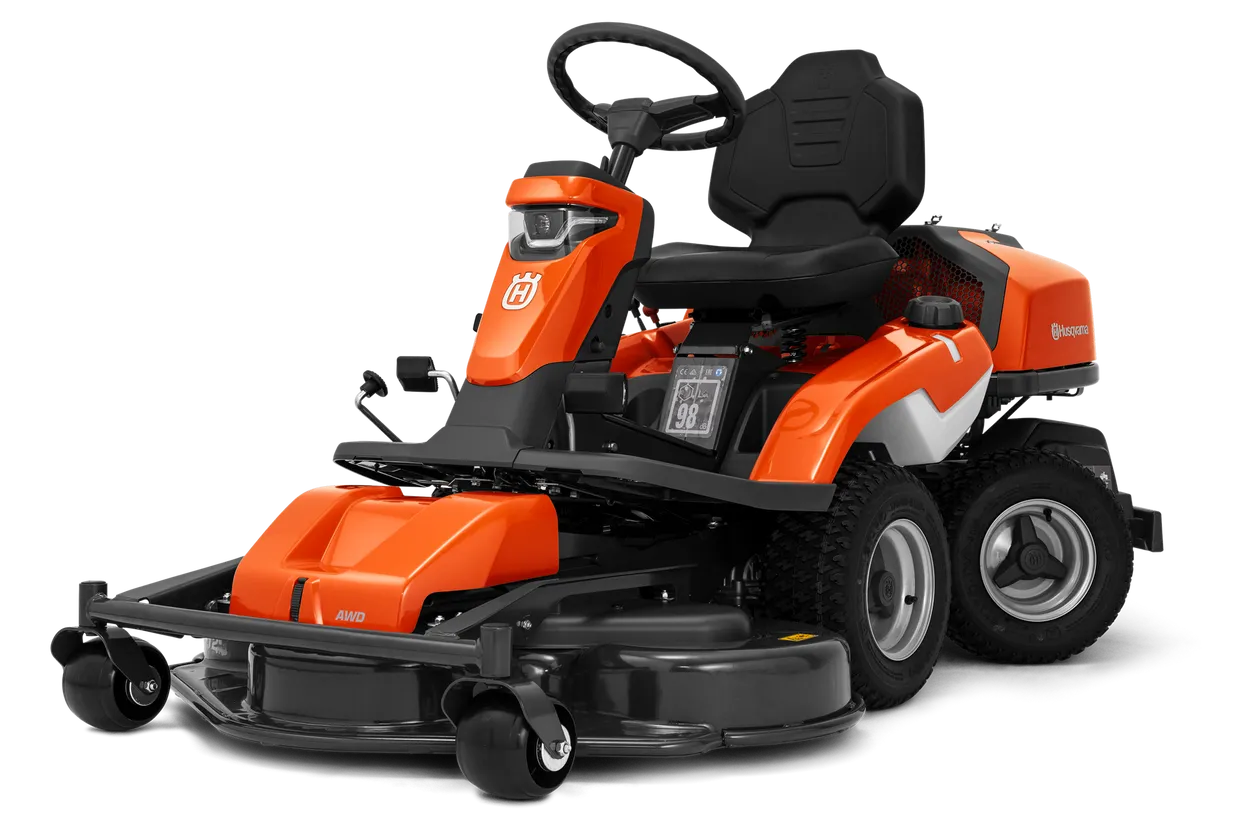

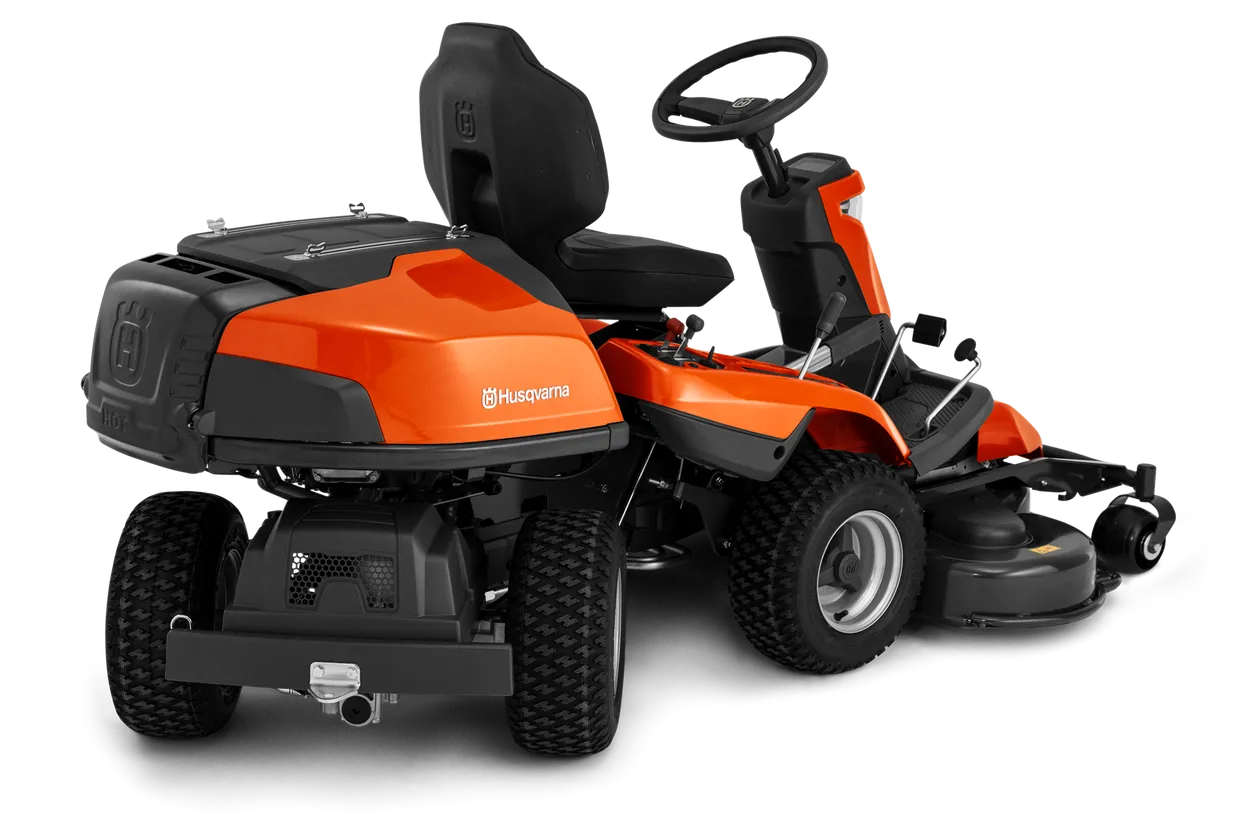

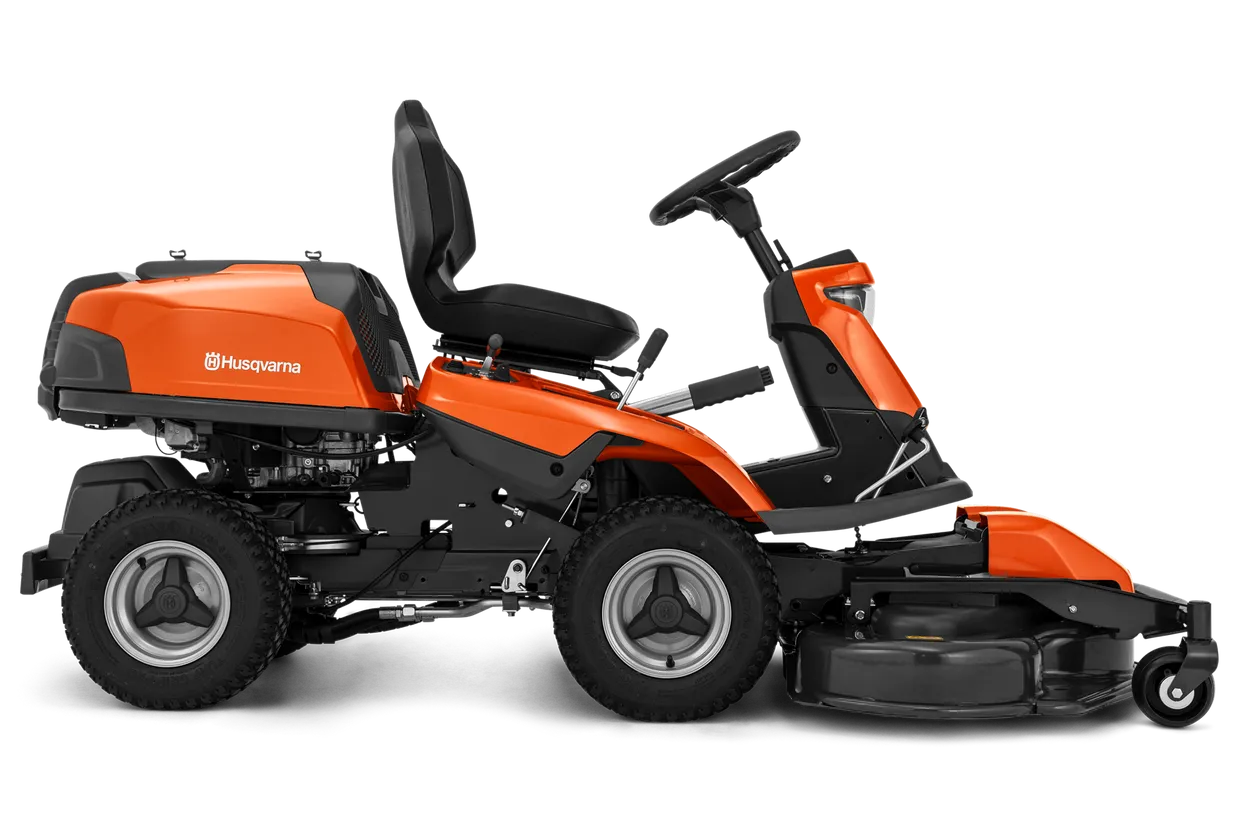

HUSQVARNA R 316TX

Name: HUSQVARNA R 316TX
Brand: Husqvarna
SKU: 970 54 27‑10
Availability: InStock

SKU: 970 54 27‑10 Part No. 970 54 27‑10 $11,499.00

Category Riders

Share This Product

Description
Features
Specifications

Description

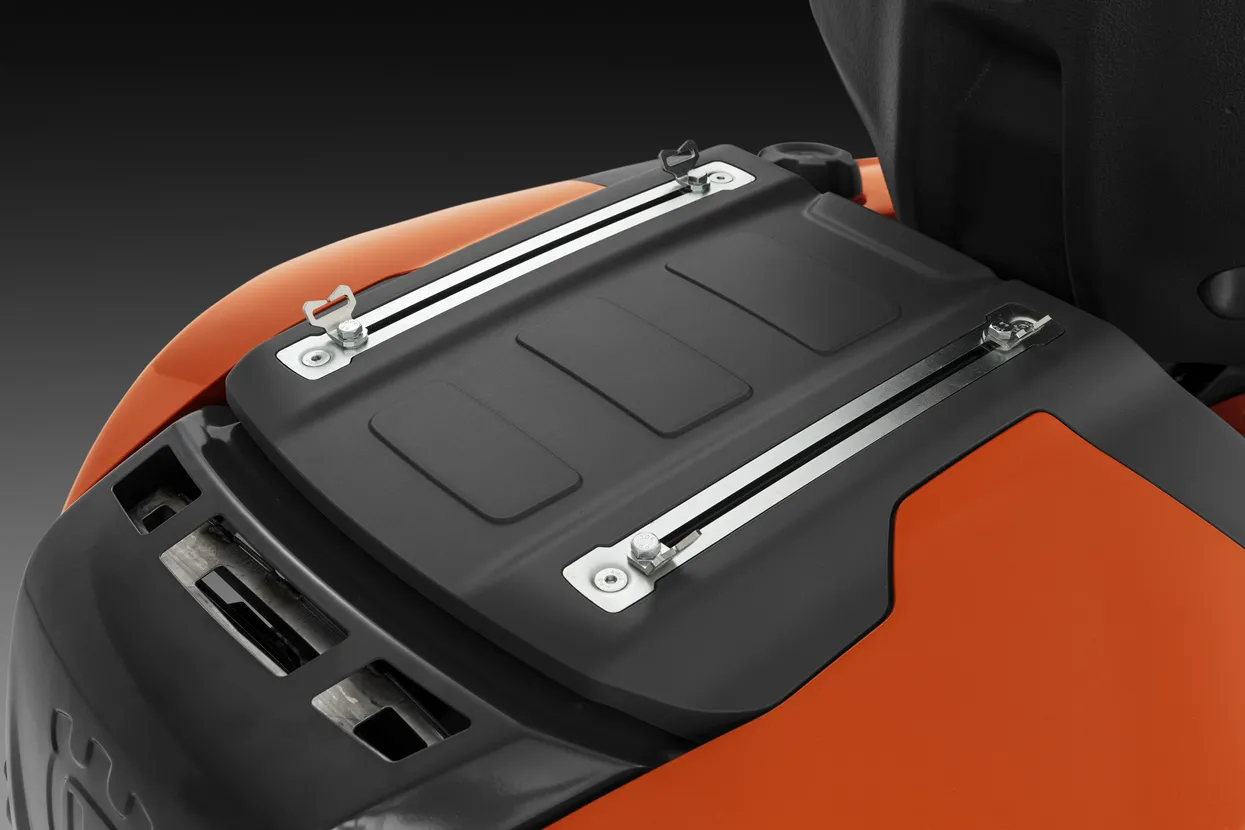

When taking on challenging lawns, you need a high-performing ride-on lawn mower with a wide range of accessories available. Husqvarna Rider R 316TX comes with a powerful V-twin engine and offers a choice of combi cutting decks for optional BioClip® (mulching) or rear ejection. The articulated steering makes tight turns smooth, while the LED headlights provide greater visibility. Integrated rails on the engine hood make it easy to attach accessories like cargo holder. Ready for Husqvarna Connect with Bluetooth®.

Features

Pivoting rear axle
Adjustable steering wheel
Hour meter with service minder
Floating cutting deck
16 inch wheels
HMI Display
Attachment frame
Attachments for versatile usage
Automatic blade engagement
Combi cutting deck
Rear ejection
Comfortable driver’s position
Easy-access cutting height lever
Pedal-Operated Transmission
Transparent fuel tank
Engine behind driver
Storage compartment
Bottle holder
External fuel cap
Dual LED lights for improved visibility.
Front-mounted cutting deck
Patented articulated steering
Pivoting support wheels
BioClip®
Tilting hood
Easy-access controls
12V socket outlet
Service position
Husqvarna Connect

Specifications

Engine
- TEMP BUNDLE EXCEPTION AU/NZ ONLY – Bundle contains: 970542901 (R316TX Rider), 967152401 COMBI 103 CUTTING DECK
- Art no: 970 54 27‑10
- Power/fuel type: Petrol
- Net power at preset rpm: 9.6 kW
- Net power at preset rpm: 2,900 rpm
- Motor/engine manufacturer: Kawasaki
- Engine name: FS481V
- Cylinder displacement: 603 cm³
- Cylinders: 2
- Engine cooling: Air
- Engine lubrication type: Full pressure
- Oil filter: Yes
Emission
- Exhaust emissions (CO₂ EU V): 851 g/kWh
Battery
- Battery capacity: 24 Ah
- Battery type: Lead-Acid
- Battery pack weight: 7.2 kg
- Battery manufacturer: Global
Cutting deck
- Uncut circle: 30 cm
- Cutting width, min: 94 cm
- Cutting width, max: 112 cm
- Cutting height min: 25 mm
- Cutting height max: 75 mm
- Blade engagement: Automatic
Dimensions
- Tyre dimensions, front: 170/60-8
- Tyre dimensions, rear: 170/60-8
- Wheelbase: 88.7 cm
- Ground clearance: 120 mm
- Base machine, length: 204.4 cm
- Base machine, width: 88.3 cm
- Base machine, height: 118.1 cm
- Gross weight towed: 125 kg
- Weight (excl. cutting equipment): 240 kg
Drive system
- PTO (Power Take Off): Belt Drive
- Transmission type: Hydrostatic
- Drive method: Dual pedal-operation
- Speed forward max: 9 km/h
- Speed reverse max: 5 mph
- Speed reverse max: 8 km/h
Equipment
- Seat suspension: Yes
- Seat type: Premium
- Hour meter type: Digital
- Seat material: Vinyl
- Seat back height: High
- Foldable seat: Yes
- Steering wheel type: Ergonomic – soft grip
- Parking brake, type: Disc
Vibration
- Vibration level steering wheel: 2.5 m/s²
- Vibration level seat: 0.7 m/s²
Sound and noise
- Sound pressure level at operator’s ear: 86 dB(A)
- Sound power level, guaranteed (LWA): 98 dB(A)
- Sound power level, measured: 97 dB(A)
