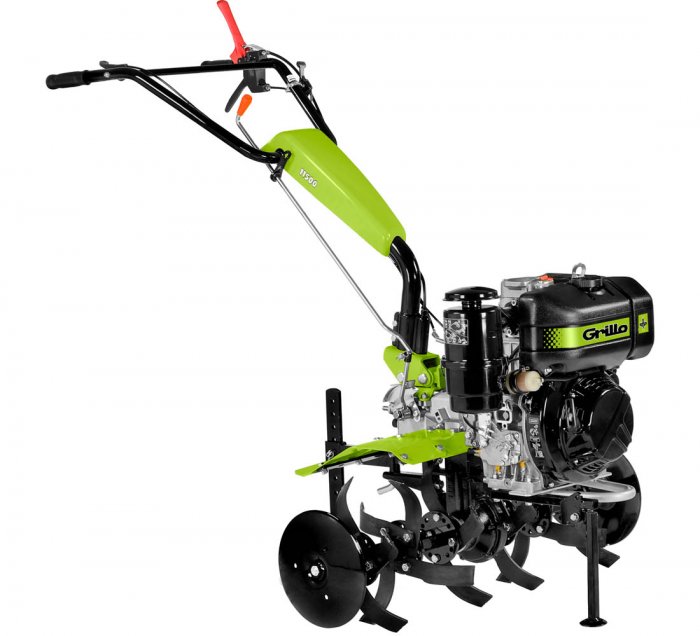

11500

Features

The Grillo 11500 is equipped with an active coupling device; the feed lever on the handlebar, when pressed, starts the rotation of the tines. When the lever is released, the tines stop immediately and the engine remains running. Maximum practicality and safety.

The oil-bath gear transmission has 3 speeds plus reverse and the gear lever is always within easy reach. The tiller casing is made of cast iron for maximum strength.

Grillo 11500 is available with Honda GX200 and GX 270 petrol and KD15-350 diesel engines. These are latest-generation engines with the best features for agricultural use including excellent torque at low revs. Sturdy, reliable and quiet, they are equipped with systems that reduce the force required for starting. All engines are equipped with a front bumper as standard and oil bath filter suitable for work in very dusty areas.

Specifications

• Engine Honda GX270 OHV
• Start recoil starter
• Supply fuel
• Displacement 270 cc, 1 Cylinder
• Power 8.4 HP (6.3 kW)
• Air cooled
• Oil bath air filter
• Engine Honda GX200 OHV
• Start recoil starter
• Supply fuel
• Displacement 196 cc, 1 Cylinder
• Power 5.5 HP (4.1 kW)
• Air cooled
• Oil bath air filter
• Engine Honda GX270
• Start electric, with 12 V battery
• Supply fuel
• Displacement 270 cc, 1 Cylinder
• Power 8.4 HP (6.3 kW)
• Air cooled
• Oil bath air filter
• Engine Kohler KD15 350 AE
• Start recoil starter and electric with 12V battery
• Supply diesel
• Displacement 349 cc, 1 Cylinder
• Power 7.5 HP (5.5 kW)
• Air cooled
• Oil bath air filter
• Fuel tank capacity eng. GX270 5,3 L – eng. GX200 3,1 L
• Transmission with oil bath gears
• Gearbox 3 forward gears + 1 reverse gear
• Clutch conic active
• Standard rotary tiller With 6 hoes system and side discs, working width 99 cm. With hexagonal shaft 2,7 cm
• Hoes system diametre 34 cm
• Working width area with side disks Adjustable at 72 and 99 cm (125 cm with extension kit cod. 933112)
• Working depth area without side disks Adjustable at 59 and 86 cm (112 cm with extension kit cod. 933112)
• Working depth 33 cm
• Max. revolutions tiller 1st gear 53 rpm – 2nd gear 123 rpm – 3rd gear 162 rpm – reverse gear 53 rpm
• P.T.O. 2 P.T.O: a superior P.T.O. running at the engine in anti-clockwise rotation, 11UNI 221. A second inferior synchronised P.T.O. with gearbox speeds in clockwise rotation 13 UNI
• 221
• Handlebar height and side adjustment. Fitted on anti-vibration blocks
• Weight 90 kg with eng. GX270
