G 52

Name: G 52
Brand: Grillo
SKU: cd7fb1b7cefa
Availability: InStock

SKU: cd7fb1b7cefa Part No. 8E4BF

Category Tillers

Request a Quote

Share This Product

Description
Specifications

Description

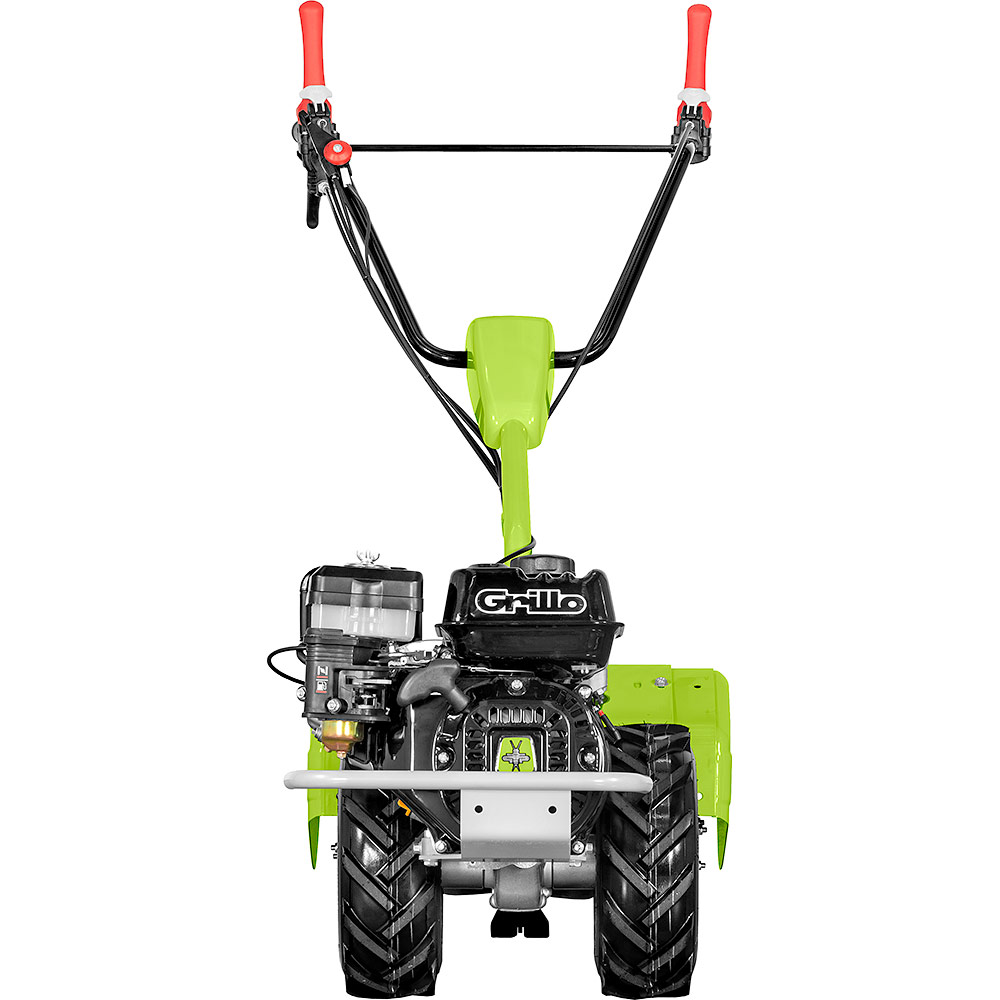

The Grillo G52 is a reversible, compact walking tractor, suitable for working in limited spaces both in horticulture and in gardening.

It is equipped with a 2 speed-gearbox with gears in oil-bath with forward and a reverse gear. It’s a comfortable walking tractor, easy to use and safe.

Several rear and front attachments can be connected to the machine, thanks to its 180° reversible handlebar: rotary tiller, sickle bar, mower etc. can be fitted via a coupling without the help of tools.

It is possible to achieve greater stability on slopes by widening the wheel track by 10 or 17 cm by means of the appropriate Grillo wheel extensions.

Specifications

Engine Loncin G200FA
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 3 L
Transmission with oil bath gears
Gearbox 1 forward gear + 1 reverse gear
Standard rotary tiller Adjustable rotary tiller with x 4 tines. Working width 500 mm
Hoes system diametre 26 cm
Working width 500 mm (370 mm with Kit cod. 929512)
Working depth 13 cm
P.T.O. For the walking tractor version, 644 rpm with anticlockwise rotarion. For the sickle bar version 965 rpm with clockwise rotation
Available tyres Tractor 13×5.00-6 wheels
Speed For the walking tractor version 1st gear 1,4 km/h, reverse gear 2,2 km/h. For the sickle bar version 1st gear 2,2 km/h, reverse gear 1,4 km/h. For the SPECIAL VERSION FOR OLIVES 1st gear 2,1 km/h, reverse gear 3,2 km/h
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Standard features Attachments quick coupling having 50 mm diameter
Safety devices ACTIVE COUPLING AND AUTOMATIC DISENGAGEMENT OF THE TILLER IN REVERSE GEAR
External sizes of the wheels 40 cm with 13×5.00-6 wheels
Weight Standard version: 67 kg
