G 55

Name: G 55
Brand: Grillo
SKU: de9352c5a4db
Availability: InStock

SKU: de9352c5a4db Part No. 8FABF

Category Tillers

Request a Quote

Share This Product

Description
Specifications

Description

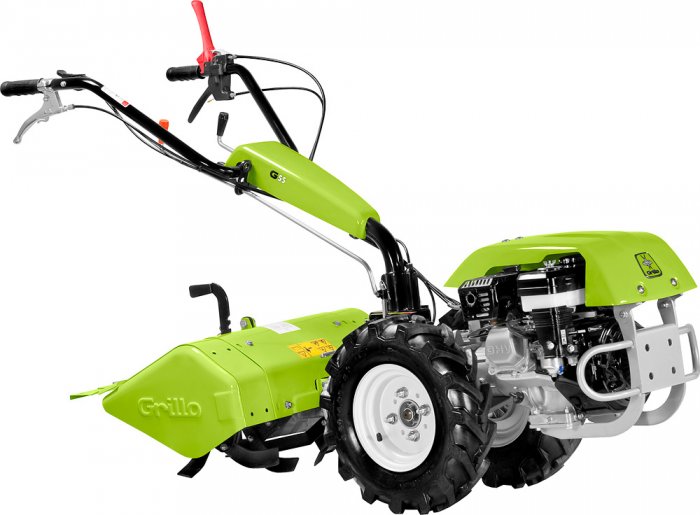

The Grillo G55 is an appropriate walking tractor for all kind of works on medium-sized areas.

It is fitted with a 4 speed-gearbox with gears in oil-bath, with 2 forward and 2 reverse gears.

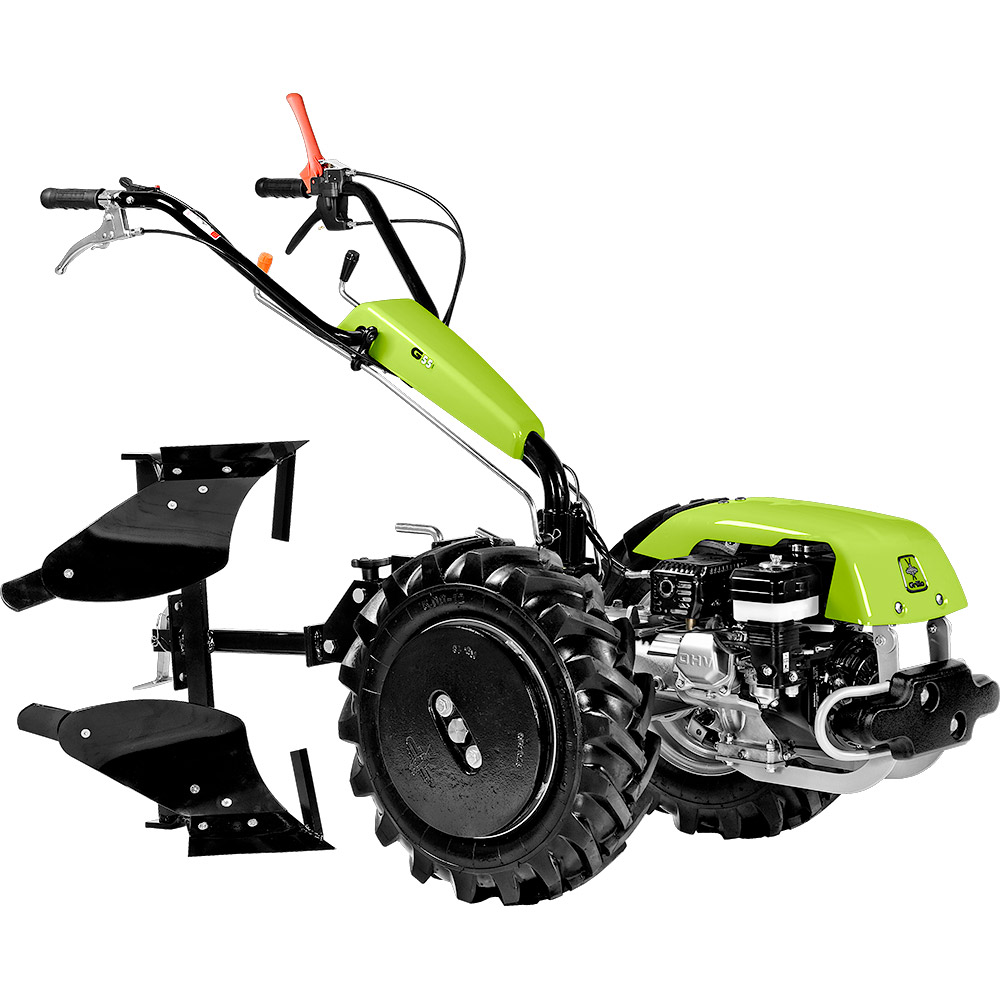

G55 is an easily manoeuvrable and safe machine and offers the possibility to attach several front and rear-mounted attachments. Its handlebar can be reversed through 180° via a lever. The attachments can be connected through a coupling without the need to use tools. There is also the possibility to attach a plough kit containing large wheels, adjustable extensions, 180° turn-wrest plough and wheel weights.

It is possible to achieve a greater stability on slopes by widening the wheel track by 12 or 24 cm by means of the appropriate Grillo wheel extensions.

Specifications

Engine Honda GX200 OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Oil bath air filter
Engine Loncin G200FA
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 3,6 L eng. 3000 OHC – 3,1 L eng. GX200 OHC
Transmission with oil bath gears
Gearbox With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
Reverse gear unit by lever
Clutch conic active
Standard rotary tiller Adjustable rotary tiller with x 4 tines. Working width 58 cm
Hoes system diametre 26 cm
Working width Adjustable at 58 and 50 cm
Working depth 13 cm
P.T.O. 965 rpm regardless of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Available tyres Pneumatic wheels tractor 4.00-8 (fixed disks), 16×6.50-8 (fixed disks), 5.00-10 (adjustable disks)
Speed With 4.00-8 wheels 1st gear 1,1 km/h, 2nd gear 2,6 km/h
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Standard features Attachments quick coupling having 50 mm diameter
Safety devices Active conic clutch
Weight Standard version: 86 kg
