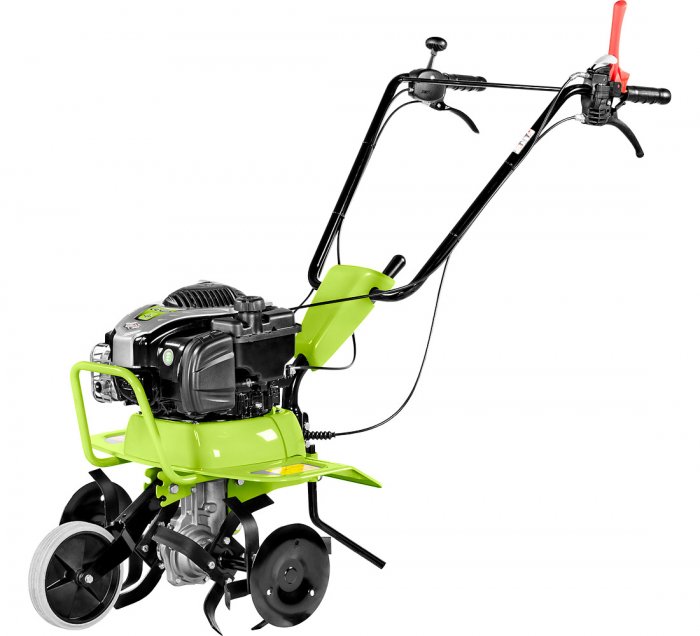

G Z2

Features

The GZ2 is a compact tiller, ideal for tilling easily even where there is not much space.

The 4-star hoe tiller measures 57 cm. Using the optional tiller kit, it is possible to have only 2 stars of tines with a working width of 35 cm, and also to use 6 stars of tines obtaining a width of 80 cm.

The Grillo GZ2 is equipped with active coupling device; in fact, the lever on the handlebar, when pressed, starts the rotation of the tines. When the lever is released the tines stop immediately but the engine remains running.

The side discs should not be used when tilling hard soil that has never been worked yet.

Instead, in softer soils, side discs become very useful: they help maintain direction, advance and protect nearby crops from being tilled.

Two spurs are supplied as standard: one for soft soil and one for hard soil. The adjustment of the spur determines the working depth.

When the spur is set low, the tines sink deeper into the soil.

While with the spur set high, the center of gravity moves forward, and the machine will then tend to move forward faster.

The use of the side discs and high spur, increase flotation and advance.

The GZ2 is fast, stable and precise!

The transmission is oil-bath gears, designed for durability. It is built entirely in Grillo factories.

The 3 HP motor provides adequate torque for tilling already at 2400 rpm! You can till slowly, from 80-90 rpm, or quickly, up to 155 rpm, depending on soil conditions and the desired level of soil shredding. Even for the deepest tillage, with the tiller at full width and totally buried, engine power places no limitations on the GZ2!

The handlebar is laterally adjustable with no need to stop. There are no screws or knobs to loosen and then tighten. It is a must-have feature when you don’t want to step on tilled soil or if you are tilling near hedges, fences or under branches.

The height-adjustable handlebar will meet the needs of all users, and the right position will always be found for all working depths.

In addition, the lower adjustment is useful for moving the GZ2 on the standard front transfer wheel.

The GZ2 can also be transported in the trunk of the car by lowering the handlebar.

Using the furrower is a pleasure and the result always leaves you satisfied!

Cleaning and maintenance are super easy! Simply check the engine oil level periodically and clean the filter. The gearbox does not require any maintenance. The GZ2, like all Grillo products, is designed and built to last and maintain its value over time. All components, from the simplest to the most complex, are of high quality. Grillo mounts the latest generation engine equipped with a Ready Start device for easy starting! All engines feature overhead valves to have minimal fuel consumption, emissions, noise and vibration. Frame, handlebar, tiller, everything is built by Grillo in Italy, using the best materials and the latest technology to have high, consistent and 100% controlled quality.

The tempered steel tines can be detached and easily replaced!

Painting of all Grillo machines is made with a double electrostatic powder coating process. After washing and preparation, a first protective coat is applied then baked in a special oven; this has proven to be the best base for the application of the finish. The second coat consists of powder coating and further baking in an oven at 190°C; this gives the characteristic hardness and shine. All machines are assembled with care in every detail and tested scrupulously by trained personnel. Final inspection includes running the engine in order to check all its functions to guarantee a first class product.

Specifications

• Engine Briggs & Stratton 575EX OHV
• Start recoil starter
• Supply fuel
• Displacement 140 cc, 1 Cylinder
• Power 3 HP (2.2 kW)
• Air cooled
• Dry air filter
• Fuel tank capacity 0,8 L
• Transmission endless screw in oil bath
• Gearbox 1 forward gear + 1 reverse gear
• Clutch active coupling
• Standard rotary tiller with 4 tines and side discs, working width 52 cm
• Hoes system diametre 28 cm
• Working width area with side disks 57 cm. With the optional kit, the tiller can be adjusted at 35 and 80 cm.
• Working depth area without side disks 52 cm. With the optional kit, the tiller can be adjusted at 30 and 75 cm.
• Working depth 28 cm
• Max. revolutions tiller 155 rpm
• Handlebar height and side – adjustable
• Standard features Front transport wheel. Two different spurs, one for hard soils, one for soft and sandy soils.
• Safety devices Active coupling: If the handlebar is released the machine stops; mudguards and handlebars compliant with the current laws and muffler protection.
• Weight 41 kg
