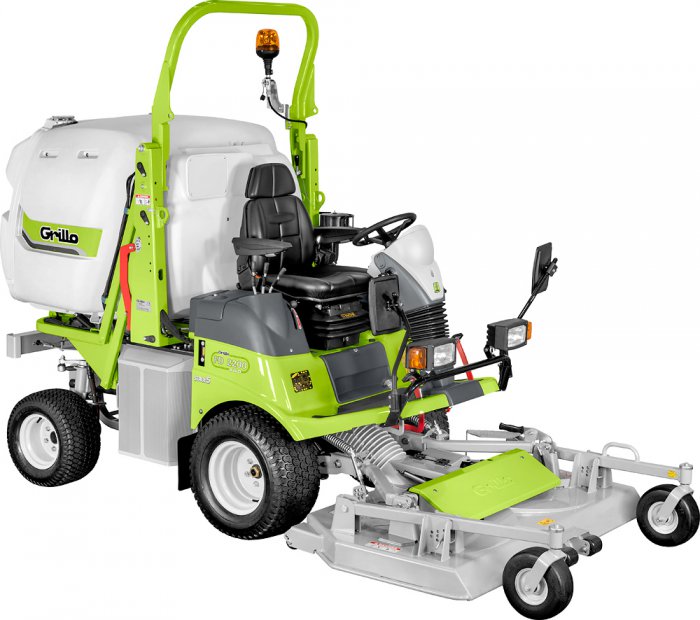

FD 2200TS Stage5 4WD
SKU: 447dd24f2c1e
Part No. 8050BY 9M5211
in stock
Grillo

FD 2200TS Stage5 4WD

SKU: 447dd24f2c1e Part No. 8050BY 9M5211
  • Description
  • Specifications

Description

The FD 2200 TS represents the maximum expression of technology and performance that can be achieved by today’s hydrostatic mowers with collection.

It has 4 permanent drive wheels, front cutting deck, large grass collection container and raised discharge height. The state-of-the-art, powerful and reliable engine has low polluting emissions and complies with international STAGE 5 standards.

The 60 cm turning radius, the unique manoeuvrability, the maximum stability on slopes, the excellent cutting capacity of the robust front deck and a collection system capable of compacting the grass inside the large grass catcher, are able to satisfy every demanding operator who is attentive to the quality of his work.

Specifications

  • Engine Yanmar 4TNV88C Stage5
  • Start electric, with 12 V battery
  • Supply diesel
  • Displacement 2190 cc, 4 Cylinders
  • Power 47 HP (34.3 kW)
  • Liquid cooled with hydraulic impeller and equipped with automatic radiator cleaning device
  • Dry air filter with interchangeable filter cartridges, safety filter and prefilter
  • Fuel tank capacity 50 L
  • Hydraulic oil tank 25 L
  • Traction hydraulic, 4 wheel drive (permanent even with narrow turning radius)
  • Gearbox hydrostatic transmission with hydraulic motors on the 4 wheels
  • Clutch hydraulic, with electric control activated through PTO and with blade brake
  • Cutting height hydraulic adjustable from 2 to 12 cm
  • Grass collector capacity 1400 L
  • Grass catcher charging system Ø 400 cm (16 “) turbine with hydraulic motor fitted with a safety valve to avoid damage due to foreign objects. Turbine activation independent of the
  • cutting deck. Double working speed.
  • Grass collector discharging system hydraulic grass catcher emptying with automatic opening
  • Maximal discharging height 250 cm
  • Rear projection 50 cm
  • Differential locking self-engaging and manual with push button
  • Front tyres 24×12.00-12 garden
  • Rear tyres 20×10.00-10 garden
  • Steering system steering wheel with hydraulic drive
  • Speed from 0 to 22 km/h continuously variable
  • Inner turning radius 62 cm
  • Seat super comfort adjustable and sprung seat with armrests
  • Mowing capacity per hour (indicative) 15500 m^2/h
  • Standard features automatic disengagement of blade and turbine when grass catcher is full. Hydraulic deck lifting and grass catcher emptying. Lights and indicators kit
  • Standard features digital display with rpm indication and safety micro-switches control
  • Length 281 cm without cutting deck – 364 cm with cutting deck [p/n. 9M5211]
  • Width 138 cm without cutting deck – 162 cm with cutting deck [p/n. 9L9611]
  • Height 199 cm (with roll bar or cabin 231 cm)
  • Distance between axles 141 cm
  • Clear span from the ground 16 cm
  • Weight 1385 kg without cutting deck – 1656 kg [p/n. 9M5211]
