Husqvarna P 524X

Name: Husqvarna P 524X
Brand: Husqvarna
SKU: 970 60 15‑01
Availability: InStock

SKU: 970 60 15‑01 Part No. 970 60 15‑01 $24,499.00

Category Riders

Share This Product

Description
Features
Specifications

Description

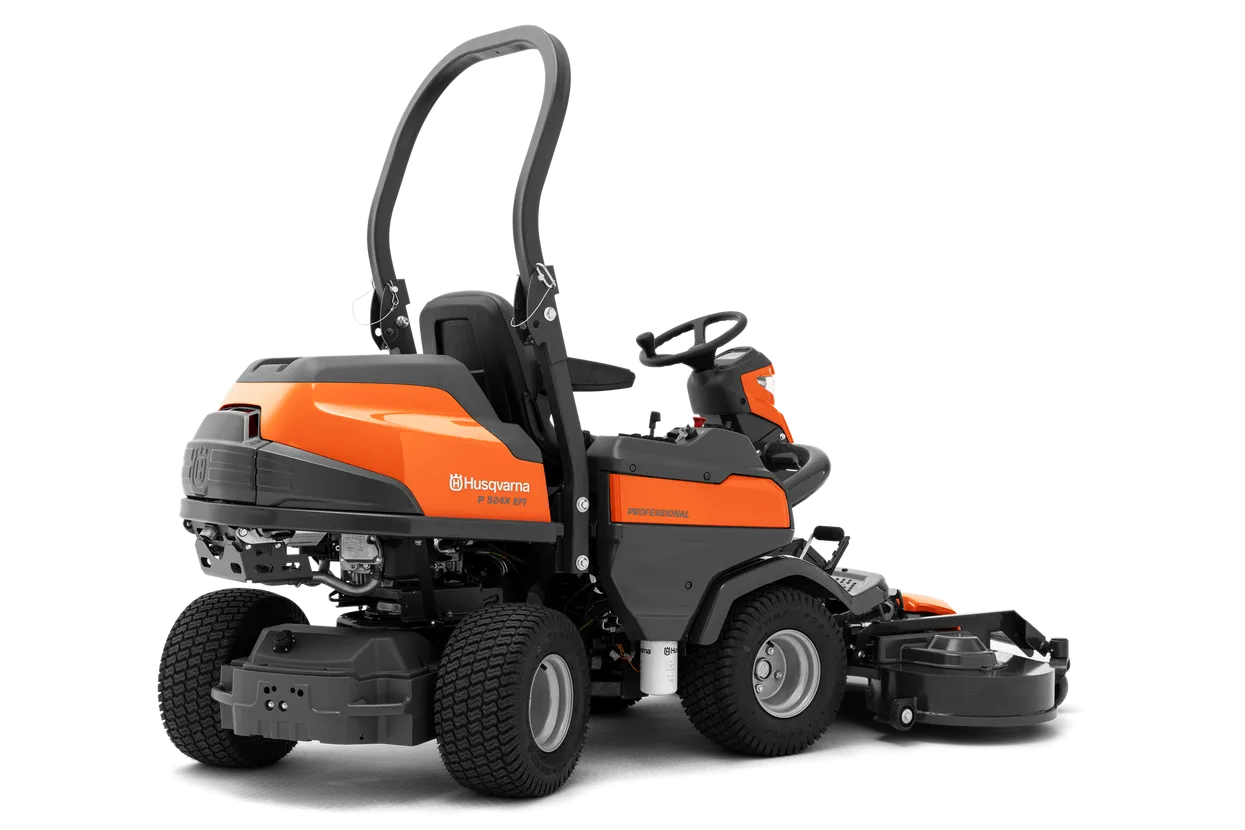

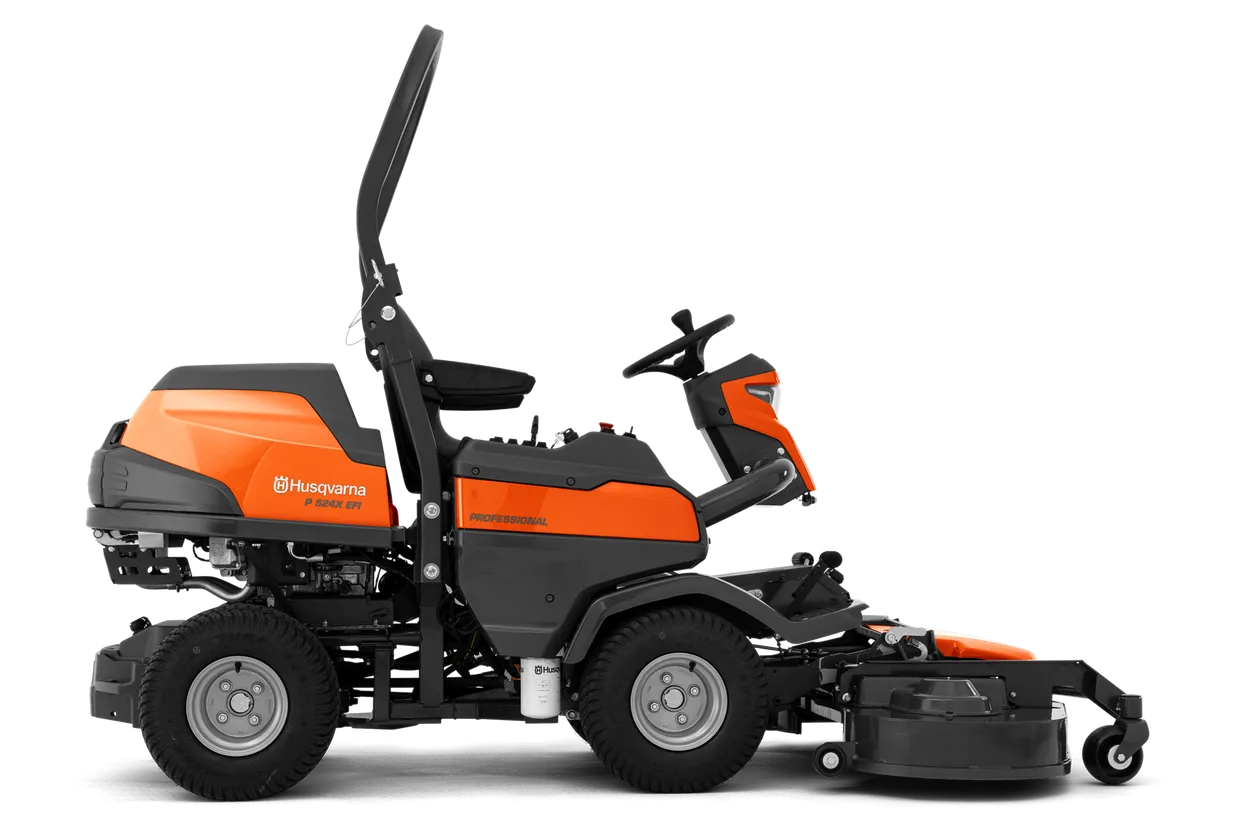

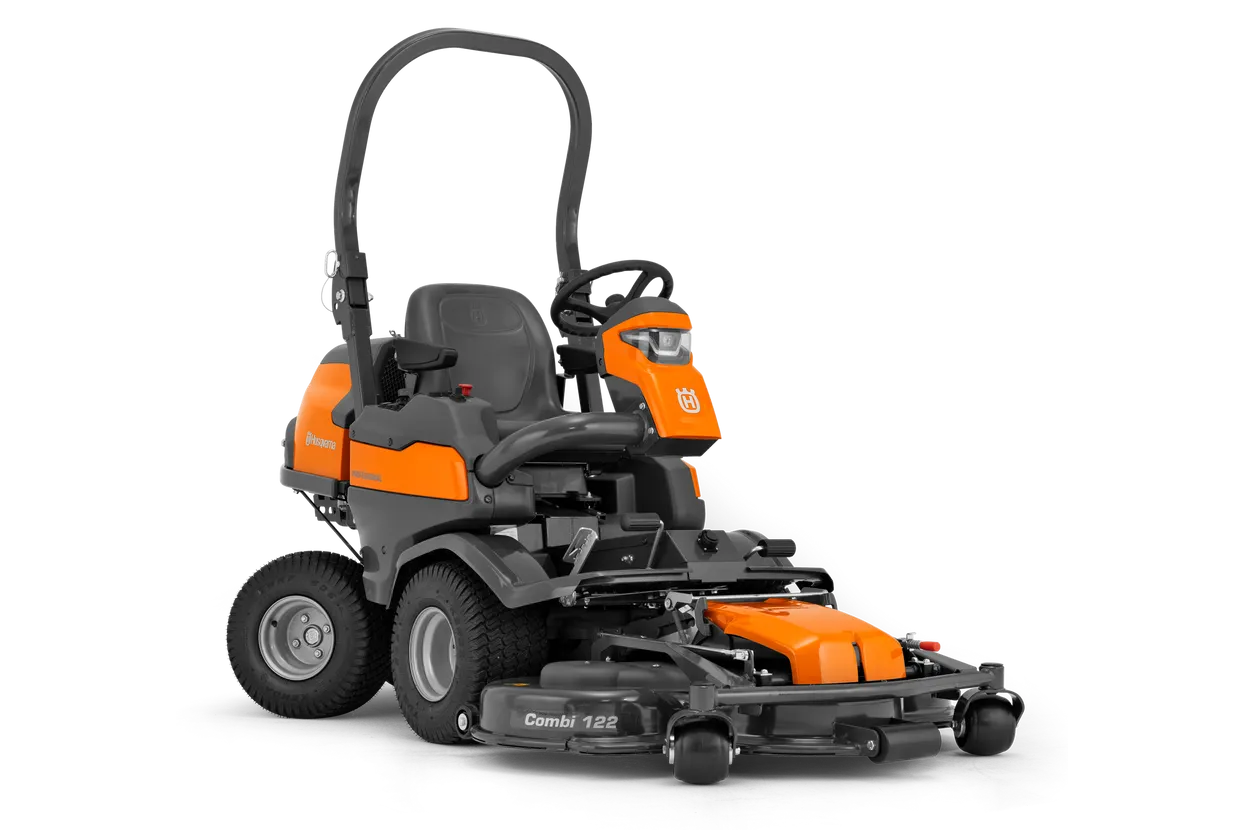

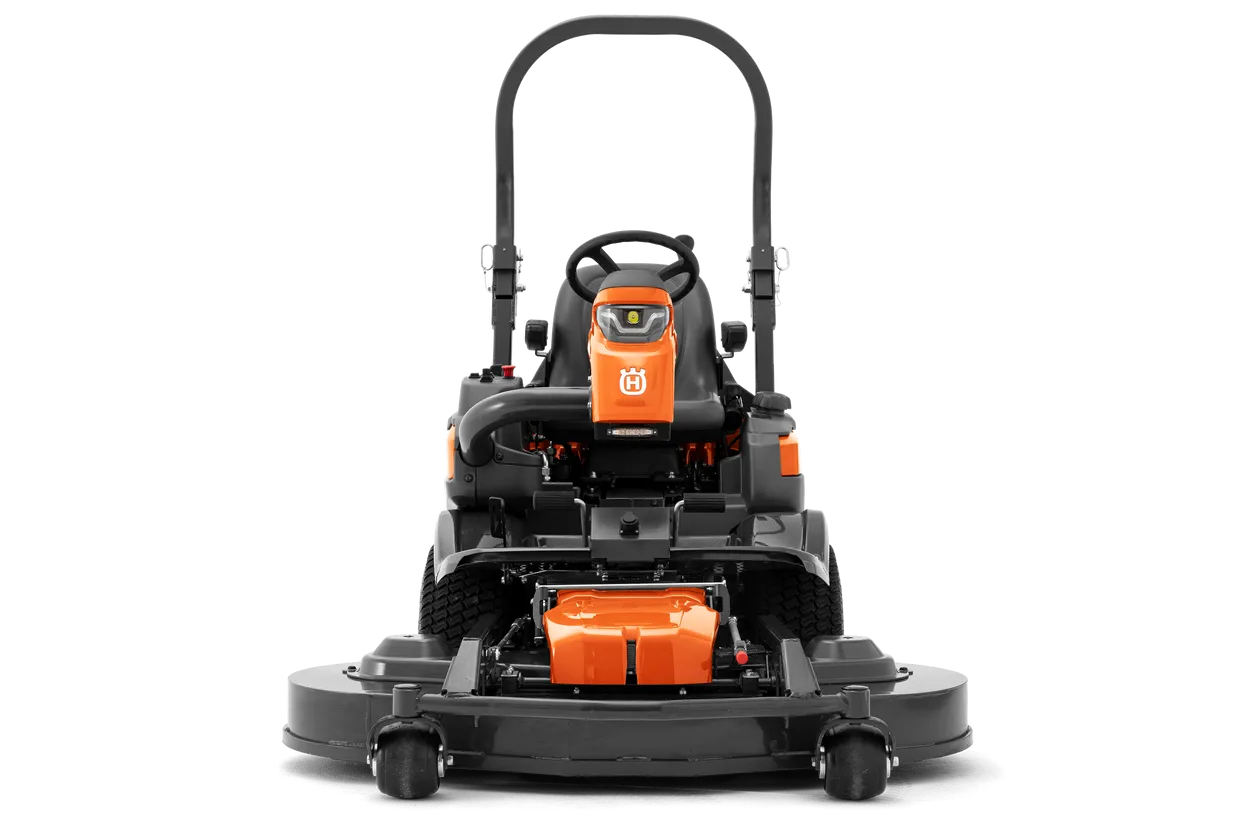

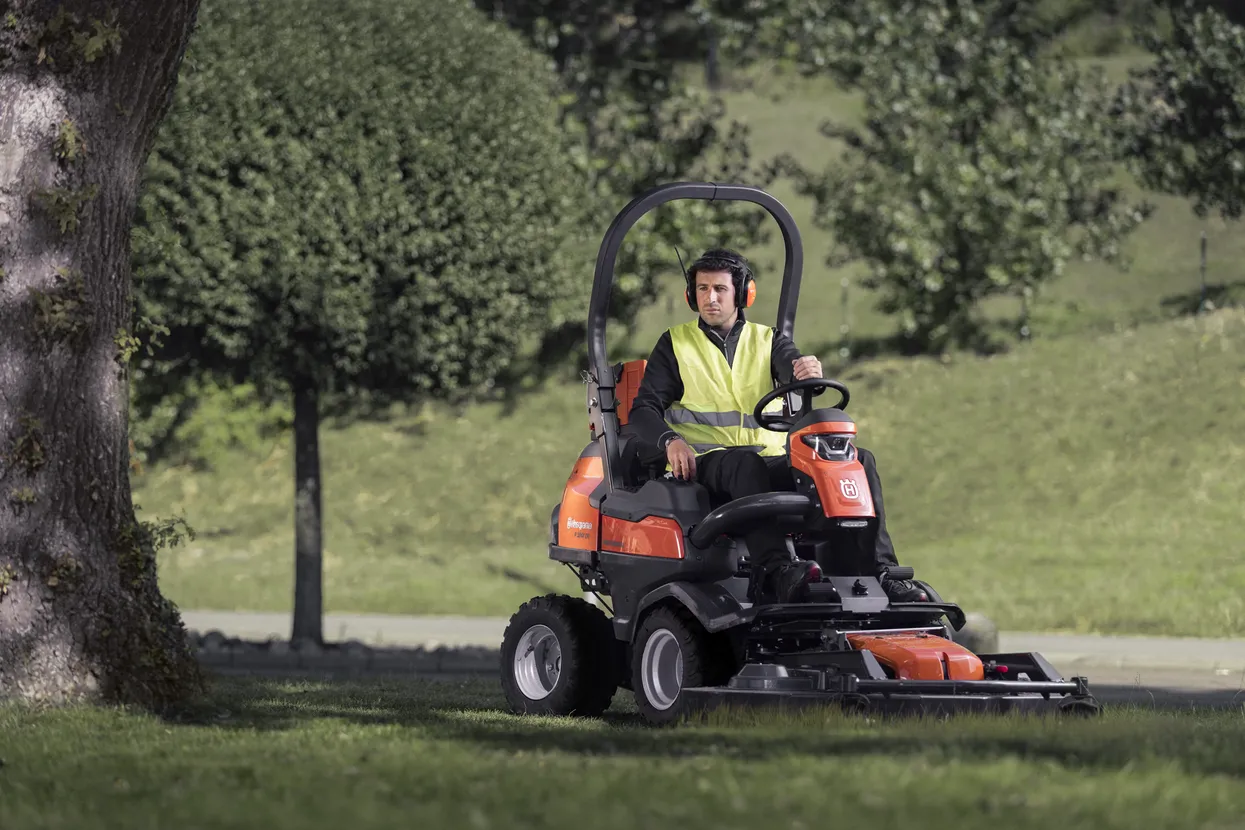

Husqvarna P 524X is a front-mounted petrol ride-on lawn mower, built for commercial use. Compact and versatile with articulated steering, All-Wheel Drive and a powerful engine from Kawasaki. An electric attachment lift enables efficient and comfortable work. Intended for facility management companies, sports clubs and for contractors who want a manoeuverable ride-on solution for year-round duties in complex areas. Delivered deck-less, can be equipped with 112 and 122 cm Combi cutting decks.

Features

Patented articulated steering
All-Wheel Drive (AWD)
Durable ladder frame
Hydraulic power steering
OHV-engine by Kawasaki
Versatile usage
Quick coupling
Trimming ability
Mowing accessibility
Ergonomic operation
Easy-access controls
16 inch wheels
Dual LED lights
Electric engaged parking brake
Roll Over Protective Structure (ROPS)
Power outlet
Commercial grade transmission
Cast iron rear wagon
Improved robustness
Greasable mandrels
Service position
Ready for Combi deck

Specifications

Engine: P 524X RIDER P 524X (2023-)
Part No: 970 60 15-01
Power/Fuel Type: Petrol
Net Power at Preset RPM: 13.9 kW
Net Power at Preset RPM (RPM): 3,000 rpm
Motor/Engine Manufacturer: Kawasaki
Engine Name: FX Series V-Twin
Cylinder Displacement: 726 cm³
Cylinders: 2
Engine Cooling: Air
Engine Lubrication Type: Full pressure with oil filter
Oil Filter: Yes
Emission: Exhaust Emissions (CO₂ EU V): 792 g/kWh
Battery:
- Battery Capacity: 24 Ah
- Battery Type: Lead-Acid
- Battery Pack Weight: 7.2 kg
- Battery Manufacturer: Global
Cutting Deck:
- Uncut Circle: 50 cm
- Cutting Width (Min): 112 cm
- Cutting Width (Max): 122 cm
- Cutting Height (Min): 25 mm
- Cutting Height (Max): 75 mm
- Blade Engagement: Electric clutch
Dimensions:
- Tyre Dimensions (Front): 18×8.5-8
- Tyre Dimensions (Rear): 18×8.5-8
- Wheelbase: 100 cm
- Ground Clearance: 130 mm
- Base Machine (Length): 206 cm
- Base Machine (Width): 98 cm
- Base Machine (Height): 122 cm
- Gross Weight Towed: 200 kg
- Weight (Excl. Cutting Equipment): 433 kg
Drive System:
- PTO (Power Take Off): Belt-driven
- Transmission Type: Hydrostatic
- Transmission Manufacturer (Rear): Kanzaki
- Drive Method: Dual pedal-operation
- Speed (Forward Max): 13 km/h
- Speed (Reverse Max): 5.6 mph / 9 km/h
- Transmission Manufacturer (Front): Kanzaki
- Transmission Model (Front): KTM 23LB
- Transmission Model (Rear): KTM 23SB
Equipment:
- Seat Suspension: Yes
- Seat Type: Professional
- Hour Meter Type: Digital
- Seat Material: Vinyl
- Seat Back Height: High
- Foldable Seat: Yes
- Steering Wheel Type: Professional
- Parking Brake Type: Disc
Vibration:
- Vibration Level (Steering Wheel): 2.5 m/s²
- Vibration Level (Seat): 0.5 m/s²
Sound and Noise:
- Sound Pressure Level (at Operator’s Ear): 90 dB(A)
- Sound Power Level (Guaranteed – LWA): 105 dB(A)
- Sound Power Level (Measured): 104 dB(A)
